To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Macromatic |
| Model | THR-1 |
| Manufacturer Product Number | THR-11566-04 |
| Description | TDR; 0.05...5 s; Single Shot; 12V DC; 1C SPDT; QC 0.250"; Surface Mount |
| Datasheet | Download Datasheet |

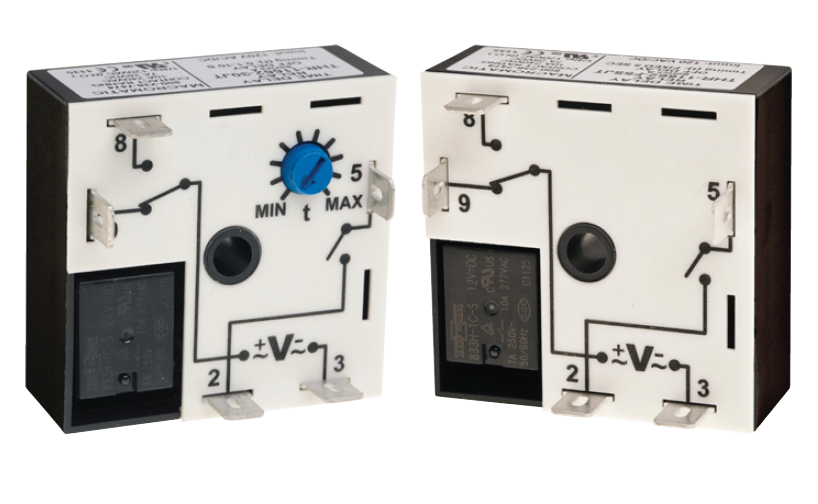

The Macromatic THR-11566-04 is a time delay relay with 1C SPDT output and rated 10 A at 240 V AC, 7 A at 28 V DC, driven by a 12V DC input.
It is adjustable from 0.05 to 5 s and set by an onboard knob.
It is a Single Shot timer.
Upon application of control voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the output is energized and the time delay (t) begins. During the time delay (t), the trigger is ignored. At the end of the time delay (t), the output is de-energized and the time delay relay is ready to accept another trigger.
It is started by a control switch.
It has Surface Mounting and 0.250" (6.3mm) quick-connect terminals.
