Product Description
|
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Control Voltage | 120 VAC |
| Current | 10 A |
| Contact Configuration | 1A SPST-NO |
| Mounting | Surface Mount |
| Time Range | 0.5-5 sec |
| Memory | With Memory |
| Load (Burden) | Maximum of 2 VA for all voltages |
| Setting Accuracy | Maximum Setting: +5%, -0% Minimum Setting: +0%, -50% |
| Repeat Accuracy: (constant voltage and temperature) | +/-0.1% or +/- 0.04 seconds, whichever is greater Reset Time: 100ms |
| Start-up Time: (Time from when power is applied until unit is timing) | 0.05 Seconds |
| Maintain Function Time: (Time unit continues to operate after power is removed) | 0.01 Seconds |
| Minimum Required Trigger Switch Closure Time | 50 ms |
| Temperature | Operating: -28° to 65°C (-18° to 149°F) Storage: -40° to 85°C (-40° to 185°F) |
| Output Contacts | 10A @ 240VAC / 7A @ 28VDC SPNO, 1/4hp @ 120VAC (N.O.) |
| Life | Mechanical: 10,000,000 operations Full Load: 100,000 operations |
| Mounting | Surface with one #8 or #10 screw or on 35mm DIN rail with Macromatic P/N 70500 |
| Termination | 0.25” male quick-connect terminals |
| Series Features |

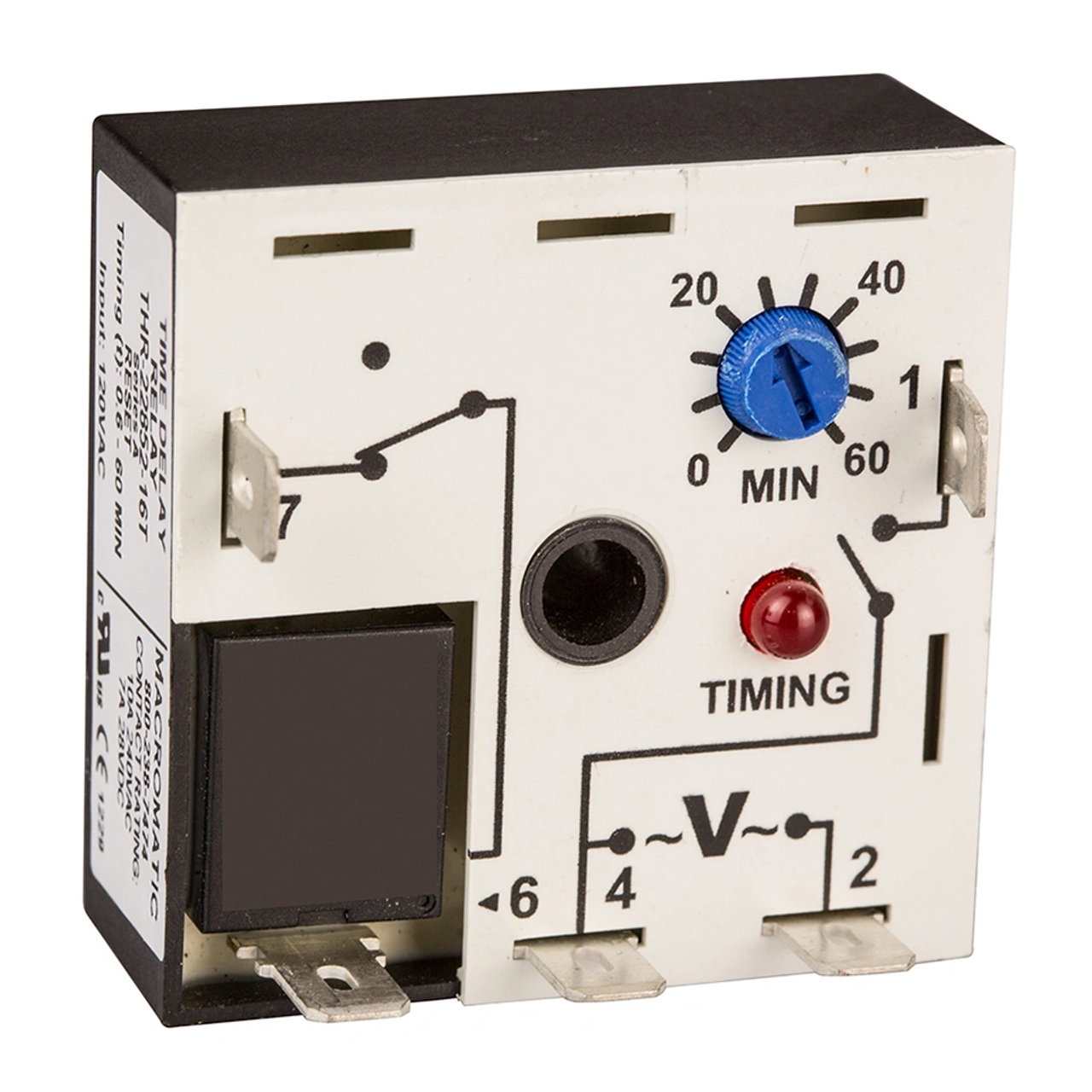

| RT Series Reset Timer |
| Series Description: The RT series is a microprocessor based Reset Timer that delivers reliable and accurate timing for critical applications. The compact 2” x 2” housing installs with a single bolt through the center mounting hole. This design saves panel space and installation time compared to many traditional Reset Timers. |
| Operation: Variety of time ranges |
|
