To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Macromatic |
| Manufacturer Product Number | PTA2002MB |
| Description | Percentage Timer; Percentage; 2 minutes; 120V AC; No -- restarts the cycle; SPNO |
| Datasheet | Download Datasheet |

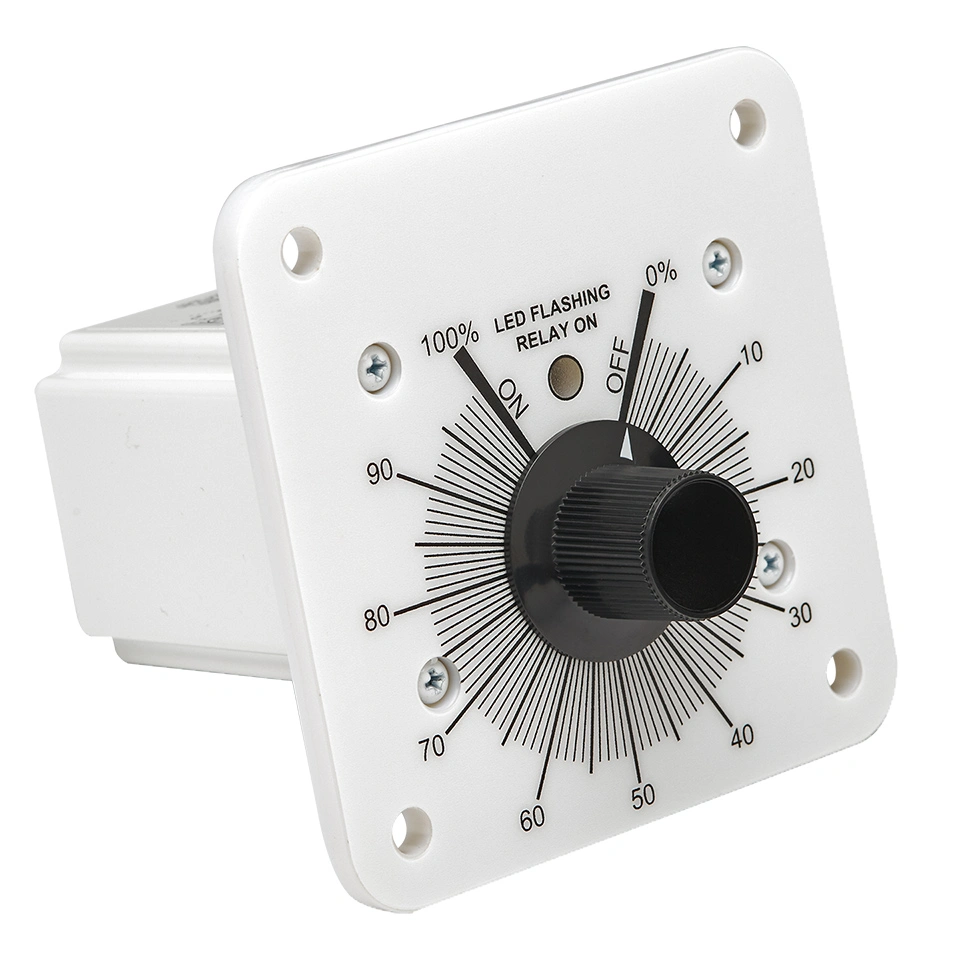

The Macromatic PTA2002MB is a percentage timer with SPNO output and rated 10 A at 240 V AC, 7 A at 28 V DC, driven by a 120V AC input.
It repeats a 2 minute cycle, with the output on for an adjustable 0 to 100%.
It keeps no memory of the cycle: a loss of supply restarts it from the beginning.
It has Panel Mount mounting and screw terminals.
| Category | |
| Manufacturer | Macromatic |
| Timing Function | Percentage |
| Cycle Time | 2 minutes |
| On-Time Adjustment | 0...100% of the cycle, dial marked in 1% increments |
| Memory | No -- restarts the cycle |
| Input Voltage | 120V AC |
| Input Operating Range | +10%/-15% of nominal |
| Setting Accuracy (%) | ±2%, with a setting precision of ±1% of the total cycle |
| Repeatability (%) | ±0.1% or ±0.04 s, whichever is greater |
| Start-Up Time | 0.05 s |
| Recovery Time (ms) | 300 |
| Status Indicator | Steady while the output is off, blinking while it is on |
| Contact Configuration | SPNO |
| Number of Poles | 1 |
| Output Rating | 10 A at 240 V AC, 7 A at 28 V DC |
| Mounting Type | Panel Mount |
| Termination Style | Screw Terminal |
| Rated Power | 3 VA maximum |
| Operating Temperature (Storage) | -28...+65 °C (-40...+85 °C) |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
| Approvals | UL Recognized (E109466) |
