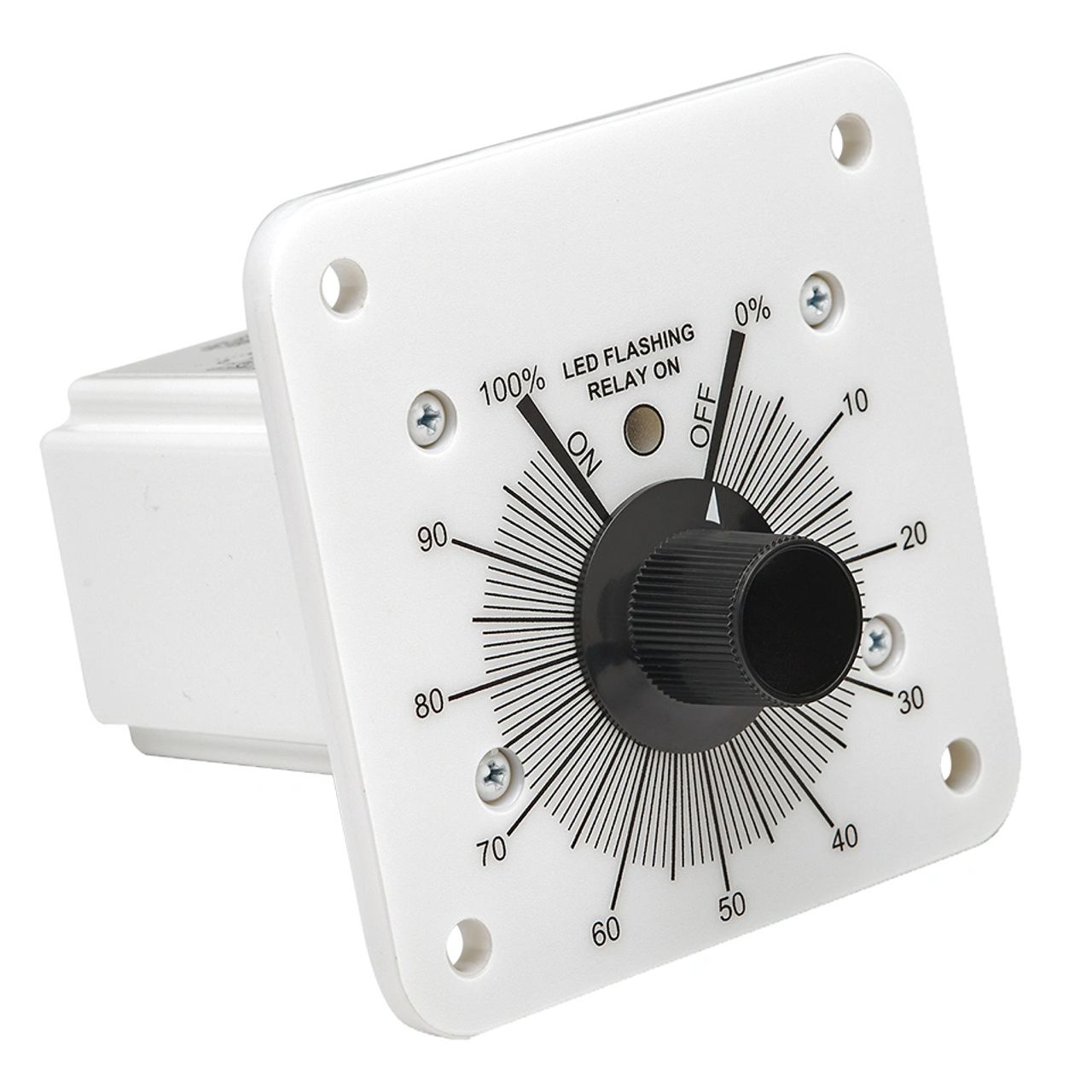

    Macromatic PTA1001H

    Manufacturer Macromatic
    Manufacturer Product Number PTA1001H

    This item is out of stock. Please submit an RFQ or call 800-526-5376 for pricing and delivery.

    Bulk Pricing

    Qty.Price
    1
    $124.07

    Product Description

    Percentage Tmer • Control Voltage: 240 VAC • Current: 10 A • Contact Configuration: 1A SPST-NO • Mounting: Panel Mount • Time Range: 1 Hr • Memory: With Memory

          Product Information       Resources
    ManufacturerMacromatic
    Product Category Timer
    Product Sub Category Percentage Tmer
    SeriesPTA Series

      Download Datasheet

      RoHS Compliant
          Specifications
    Product Attribute
    		Attribute Value
    Control Voltage240 VAC
    Current10 A
    Contact Configuration1A SPST-NO
    MountingPanel Mount
    Time Range1 Hr
    MemoryWith Memory
    Load (Burden)Maximum of 3 VA for all voltages
    Setting Accuracy+/- 2%
    Setting Precision+/- 1% of total cycle time
    Dial ResolutionDial settings marked in 1% increments
    IndicationLED remains on steady during relay OFF time
    LED blinks during relay ON time
    Repeat Accuracy(constant voltage and temperature): +/-0.1% or +/- 0.04 seconds, whichever is greater
    Reset Time 300ms Start-up Time: (Time from when power is applied until unit is timing): 0.05 Seconds
    TemperatureOperating: -28° to 65°C (-18° to 149°F)
    Storage: -40° to 85°C (-40° to 185°F)
    Output Contacts10A @ 240VAC / 7A @ 28V DC SPNO, 1/4hp @ 120V AC
    Life Mechanical: 10,000,000 operations
    Full Load: 100,000 operations
    MountingPanel Mount with supplied hardware
    TerminationPressure Clamp Screw Terminals #12-22 AWG Wire, Solid, Stranded Wire
    Recommended Tightening Torque 7 in-lbs. (12 in-lbs maximum)
    PT Series Finger-Safe Terminal Cover P/N 70600
          Series Features
    PTA Series | Percentage Timer With Memory
    Series Description: The PTA Series is a microprocessor-based Percentage Timer that delivers reliable and accurate timing for critical applications where the ON time (t1), as a percentage of the total cycle time, must be adjustable. The fi xed overall length (t2) of the repeating ON/OFF cycle is selected as the time range with multiple ranges off ered in seconds, minutes, and hours. Typical applications include controls for irrigation, chemical feeding, electric heating & cooling, motors and lubrication systems.

    FUNCTION: PERCENTAGE
    Upon initial application of control voltage, the output is energized and time delay (t1) begins. Time Delay (t1) is adjustable as a percentage of the overall cycle time (t2). At the end of time delay (t1), the output is de-energized for the remainder of overall cycle (t2-t1). The sequence then repeats until input voltage is removed. If control voltage is removed and reapplied, the timing cycle will continue from where it left off when the input voltage was removed. A setting of 100% energizes the output continuously while a setting of 0% de-energizes the output continuously.
    Operation: Secure termination with bare wire or crimp terminals
    • Industry-standard panel cutout and mounting pattern
    • Retains timing sequence in the event of power loss
    • Onboard potentiometer for easy time delay adjustment
    • LED indicates relay status
    • 10A SPNO output
    • Terminal block makes wiring easier from top or bottom
    • Secure termination with bare wire or crimp terminals
    • Touch-safe terminal cover available - Macromatic P/N 70600
    • Mounting hardware included
