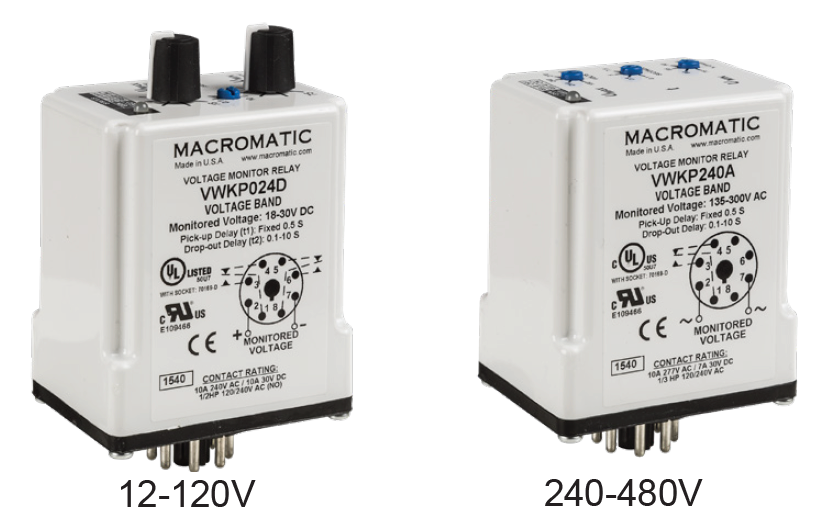

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Macromatic |
| Manufacturer Product Number | VWKP012D |
| Description | Voltage Monitor Relay; Voltage Band (Window); 12V DC; 0.1...10 s adjustable; DPDT |
| Datasheet | Download Datasheet |
The Macromatic VWKP012D is a voltage monitor relay with DPDT output and rated 10 A at 240 V AC, 7 A at 30 V DC, driven by a 12V DC input.
It watches the supply for voltage band (window), measuring true RMS.
Its upper threshold adjusts across 9 to 15V DC, and its lower across 7 to 14V DC.
The drop-out point is adjustable, 75 to 95% of the over-voltage setting.
It trips after 0.1 to 10 s (adjustable) and picks up after 0.5 s.
It has Socketable mounting and Plug In terminals.
| Category | |
| Manufacturer | Macromatic |
| Monitoring Function | Voltage Band (Window) |
| Sensing Method | True RMS |
| Input Voltage | 12V DC |
| Input Operating Range | ±50% of nominal |
| Pickup Voltage Range | 9...15V DC |
| Dropout Voltage Range | 7...14V DC |
| Dropout Voltage Adjustment | Adjustable, 75...95% of the over-voltage setting |
| Pickup Delay | 0.5 s |
| Trip Delay | 0.1...10 s adjustable |
| Setting Accuracy | maximum setting +5%/-0%, minimum setting +0%/-50%, fixed setting ±2% |
| Sensing Accuracy | ±2% under constant conditions, ±5% under variable conditions |
| Repeatability | <1% |
| Reset Method | Automatic |
| Status Indicator | Red when the relay is energized, green when it is off |
| Contact Configuration | DPDT |
| Number of Poles | 2 |
| Output Rating | 10 A at 240 V AC, 7 A at 30 V DC |
| Mounting Type | Socketable |
| Termination Style | Plug In |
| Rated Power | <2 VA |
| Operating Temperature (Storage) | -28...+65 °C (-40...+85 °C) |
| Mechanical Life | 10,000,000 |
| Electrical Life | 100,000 |
| Approvals | cURus Recognized and cULus Listed for industrial control equipment (50U7), with socket 70169-D |
