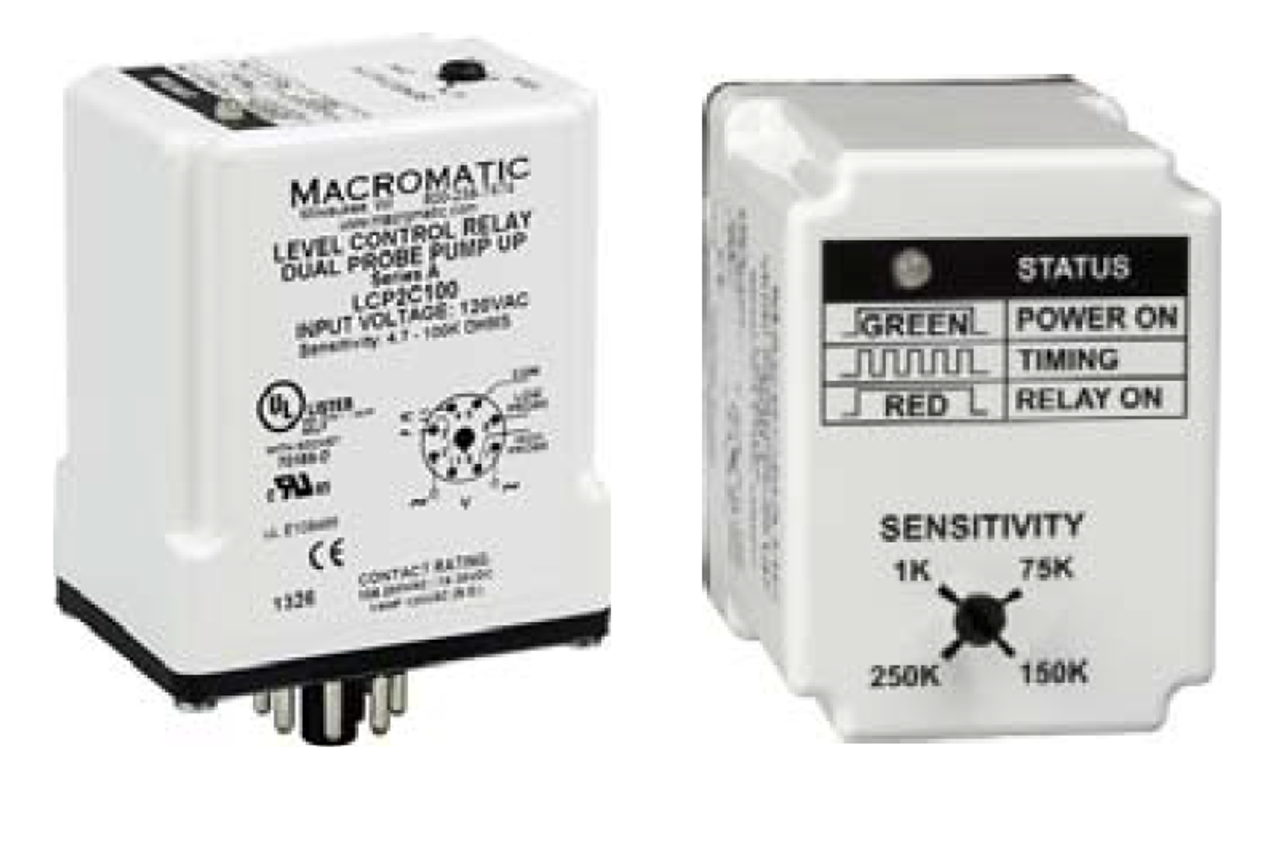

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Macromatic |
| Manufacturer Product Number | LCP8E250 |
| Description | Liquid Level Relay; Pump Up; 24V AC; Symcom and Crouzet; 1K...250K ohms; Socketable |
| Datasheet | Download Datasheet |
The Macromatic LCP8E250 is a liquid level control relay rated 10 A at 240 V AC, 7 A at 28 V DC, driven by a 24V AC input.
It controls the level of a conductive liquid, pumping up to fill the tank.
It switches between a high and a low probe, so the gap between them sets how far the level travels before the pump runs again.
The setpoint covers 1K to 250K ohms between probe and common, so it is the conductivity of the liquid that decides the part.
The probe is pulsed with 5 V DC rather than held at a steady potential, which is what stops it electroplating away in service.
Its pinout is wired to cross to Symcom and Crouzet products.
It has Socketable mounting and Plug In terminals.
| Category | |
| Manufacturer | Macromatic |
| Control Function | Pump Up (Fill) |
| Number of Probes | 2 |
| Sensitivity Range | 1K...250K ohms |
| Probe Voltage | 5 V DC pulsed |
| Input Voltage | 24V AC |
| Input Operating Range | +10%/-15% of nominal |
| Pickup Delay | 1 s |
| Reset Delay | 1 s |
| Reset Method | Automatic |
| Status Indicator | Green when the control voltage is applied, flashing red while timing and red when the relay is energized |
| Output Rating | 10 A at 240 V AC, 7 A at 28 V DC |
| Mounting Type | Socketable |
| Termination Style | Plug In |
| Cross Reference | Symcom and Crouzet |
| Rated Power | 2 VA |
| Operating Temperature (Storage) | -28...+65 °C (-40...+85 °C) |
| Mechanical Life | 10,000,000 (100,000) |
| Approvals | UL Recognized, with the appropriate socket (E109466) |
