Product Description
|
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Function | Pump Down |
| Control Voltage | 240 VAC |
| Sensitivity Range | 1K to 250KΩ |
| Time Deay | 1 Sec |
| Mounting | 8 Pin Plug-In |
| Load (Burden) | 2 VA |
| Probe Voltage | 5V DC Pulsed |
| Response Time | Pick Up: One Sec Drop-out: 1 Sec |
| LED Indicator | Green ON with Control Voltage applied; Red Flashing during timing; Red ON when relay energized |
| Temperature | Operating: '-28o to + 65o C (-18 F to +149o F) Storage: '-40o to + 85o C (-40 F to +185o F) |
| Output Contacts | 10A @ 240 VAC/7A @ 28 VDC, 1/4HP @ 120 VAC (N.O.) |
| Life | Mechanical: 10,000,000 operations Full Load: 100,000 operations |
| Mounting | Requires Industry-Standard 8 Pin Octal Socket (Macromatic 70169-D or equivalent) |
| Wireing Diagram | Cross to Products from GEMS (Warrick) |
| Series Features |
| LCP Series Dual Probe|Pump up & Pump Down |

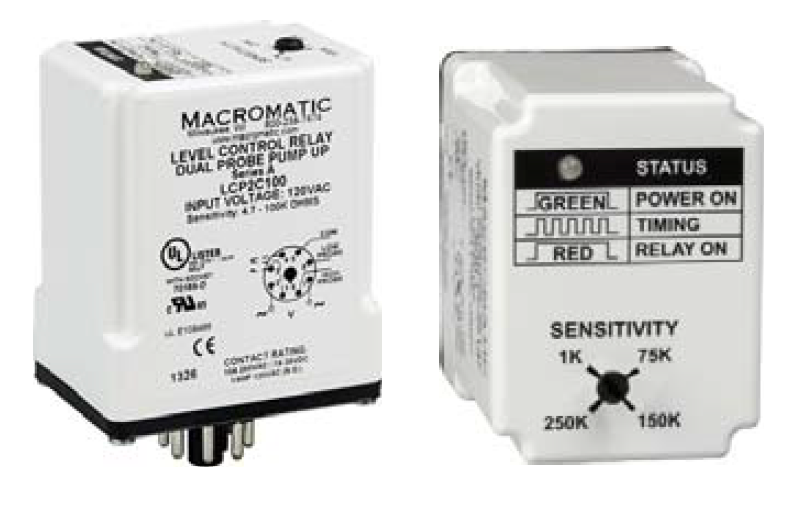

| Series Description: LCP Series Liquid Level Control Relays detect and control levels of conductive liquids (tap water, seawater, sewage, chemical solutions, coffee, ice cream, etc.) in dual probe pump-up or pump-down applications. The conductive properties of the liquid complete a circuit between a probe and common when the liquid comes in contact with both. These relays compare the value of the measured resistance between probes with the set-point of the adjustable potentiometer provided on the product. The output of the relay is used to control pumps, solenoids or valves to lower, raise or maintain the level of the liquid in the tank. Probes are pulsed with a DC voltage to prevent potential electroplating issues. Two versions of Dual Probe products are available: Pump Up (Fill): The relay energizes when the liquid level falls below the low probe and remains energized until the liquid level comes in contact with the high probe. Pump Down (Drain): The relay energizes when the liquid level comes in contact with the high probe and remains energized until the liquid level falls below the lower probe. |
| Operation: Uses industry-standard 8 Pin ocatl socket |
|
