To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Macromatic |
| Model | THR-1 |
| Manufacturer Product Number | THR-10562-F5SJ |
| Description | Time Delay Relay; 5 s, fixed; Interval On; 120V AC/DC; Rly Com Pin 2; 1C SPDT |
| Datasheet | Download Datasheet |

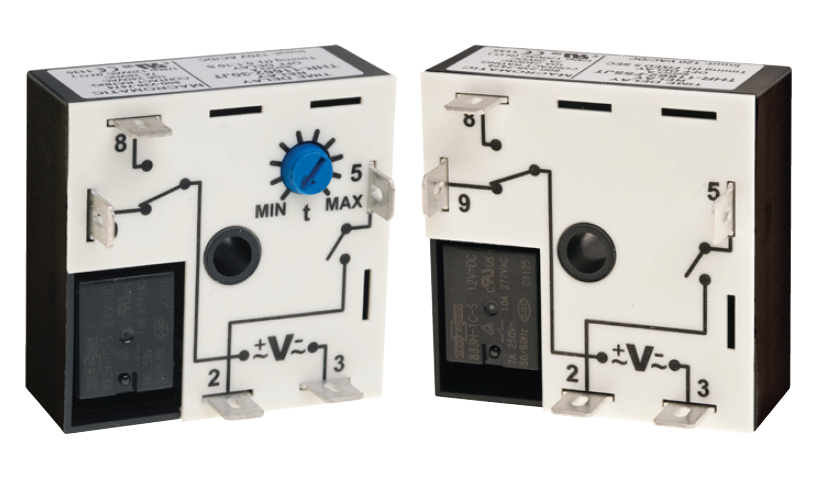

The Macromatic THR-10562-F5SJ is a time delay relay with 1C SPDT output and rated 10 A at 240 V AC, 7 A at 28 V DC, driven by a 120V AC/DC input.
It has a fixed delay of 5 s, set at the factory.
It is an Interval On timer.
Upon application of control voltage, output is energized and the time delay (t) begins. At the end of the time delay (t), the output is de-energized. Control voltage must be removed to reset the time delay relay.
Build option: relay common internally connected to pin 2.
It has Surface Mounting and 0.250" (6.3mm) quick-connect terminals.
