To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Macromatic |
| Model | THR-1 |
| Manufacturer Product Number | THR-10868-37 |
| Description | TDR; 10...1,000 min; Flasher (OFF 1st); 24V AC/DC; 1C SPDT |
| Datasheet | Download Datasheet |

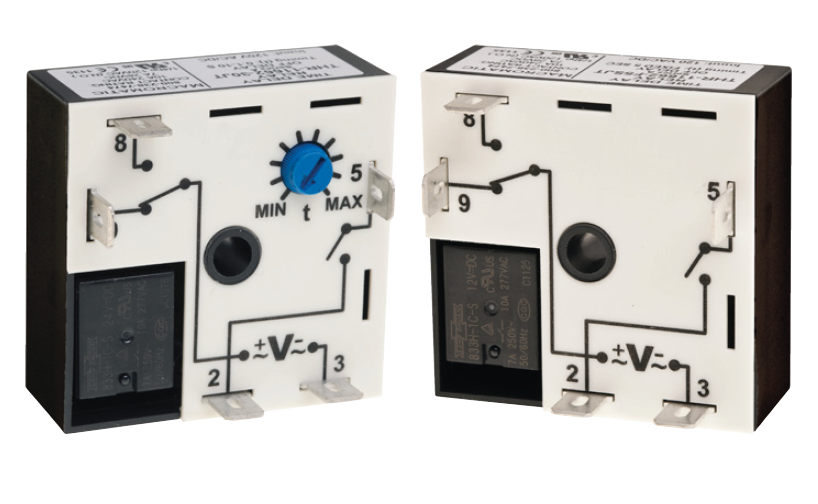

The Macromatic THR-10868-37 is a time delay relay with 1C SPDT output and rated 10 A at 240 V AC, 7 A at 28 V DC, driven by a 24V AC/DC input.
It is adjustable from 10 to 1,000 min and set by an onboard knob.
It is a Flasher (OFF 1st) timer.
Upon application of control voltage, the time delay (t) begins. At the end of the time delay (t), the output is energized and remains in that condition for the time delay (t). At the end of the time delay (t), the output is de-energized and the sequence repeats until the control voltage is removed.
It has Surface Mounting and 0.250" (6.3mm) quick-connect terminals.
| Category | |
| Manufacturer | Macromatic |
