To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Macromatic |
| Model | THR-1 |
| Manufacturer Product Number | THR-10866-35J |
| Description | Time Delay Relay; 1...100 h; Flasher (OFF 1st); 12V DC; Rly Com Pin 2; 1C SPDT |
| Datasheet | Download Datasheet |

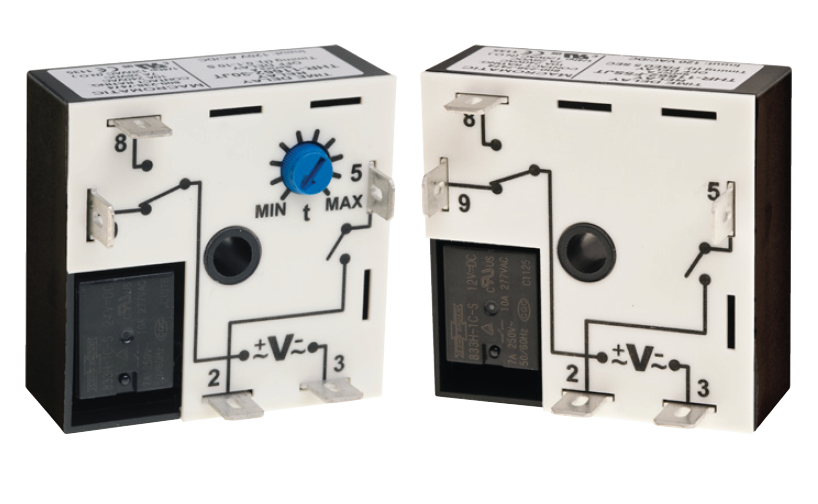

The Macromatic THR-10866-35J is a time delay relay with 1C SPDT output and rated 10 A at 240 V AC, 7 A at 28 V DC, driven by a 12V DC input.
It is adjustable from 1 to 100 h and set by an onboard knob.
It is a Flasher (OFF 1st) timer.
Upon application of control voltage, the time delay (t) begins. At the end of the time delay (t), the output is energized and remains in that condition for the time delay (t). At the end of the time delay (t), the output is de-energized and the sequence repeats until the control voltage is removed.
Build option: relay common internally connected to pin 2.
It has Surface Mounting and 0.250" (6.3mm) quick-connect terminals.
