To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Macromatic |
| Model | THS-1 |
| Manufacturer Product Number | THS-1654A-33 |
| Description | Time Delay Relay; 1...100 min; Trig. Delayed Interval; 24-240V AC; 1A SPST-NO |
| Datasheet | Download Datasheet |

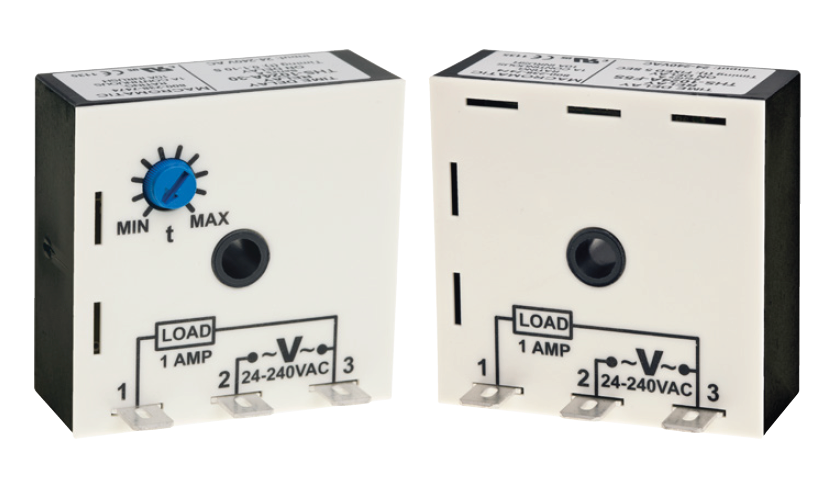

The Macromatic THS-1654A-33 is a time delay relay with 1A SPST-NO output and rated 1 A continuous, 10 A inrush at 65 °C, pilot duty, driven by a 24-240V AC input.
It is adjustable from 1 to 100 min and set by an onboard knob.
It is a Delayed Interval (Switch Trigger) timer.
Upon application of control voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the time delay (t1) begins. At the end of the time delay (t1), the output is energized and remains in that condition for the time delay (t2). At the end of the time delay (t2), the output is de-energized & the relay is ready to accept another trigger. During both time delay (t1) & time delay (t2), the trigger is ignored.
It is started by a control switch.
It has Surface Mounting and 0.250" (6.3mm) quick-connect terminals.
