| Manufacturer | Macromatic |
| Manufacturer Product Number | THS-1614D-32 |
| Description | Time Delay Relay; 0.1...10 min; Delayed Interval; 12-125V DC; 1A SPST-NO |
| Datasheet | Download Datasheet |

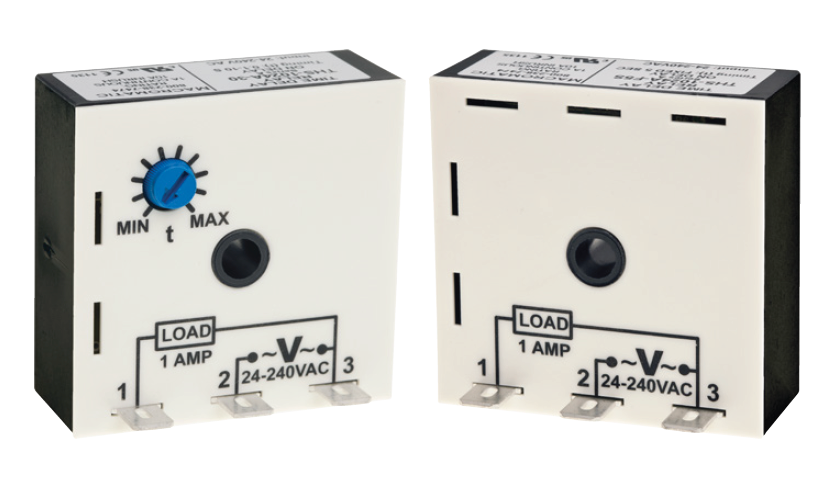

The Macromatic THS-1614D-32 is a time delay relay with 1A SPST-NO output and rated 1 A continuous, 10 A inrush at 65 °C, pilot duty, driven by a 12-125V DC input.
It is adjustable from 0.1 to 10 min and set by an onboard knob.
It is a Delayed Interval timer.
Upon application of input voltage, the time delay (t1) begins. At the end of the time delay (t1), the output is energized and remains in that condition for the time delay (t2). At the end of this time delay (t2), the output is de-energized. Input voltage must be removed to reset the time delay relay.
It has Surface Mounting and 0.250" (6.3mm) quick-connect terminals.
| Category | |
| Manufacturer | Macromatic |
| Model | THS-1 |
| Output Technology | Solid State |
| Timing Function | Delayed Interval |
| Delay Time | 0.1...10 min |
| Timing Adjustment Method | Onboard knob |
| Timing Initiate Method | Input Voltage |
| Contact Configuration | 1A SPST-NO |
| Output Rating | 1 A continuous, 10 A inrush at 65 °C, pilot duty |
| Input Voltage | 12-125V DC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -28...+65 °C (-40...+85 °C) |
| Approvals | UL Recognized (E236146) |
| Setting Accuracy (%) | Maximum setting +5%/-0%, minimum setting +0%/-50% |
| Repeatability (%) | +0.1% or +0.04 s, whichever is greater, at constant voltage and temperature |
| Start-Up Time | 0.05 s |
| Maintain Function Time | 0.01 s |
| Input Operating Range | +10%/-15% of nominal, AC at 50/60 Hz and DC |
| Rated Power | 1 VA |
