Product Description

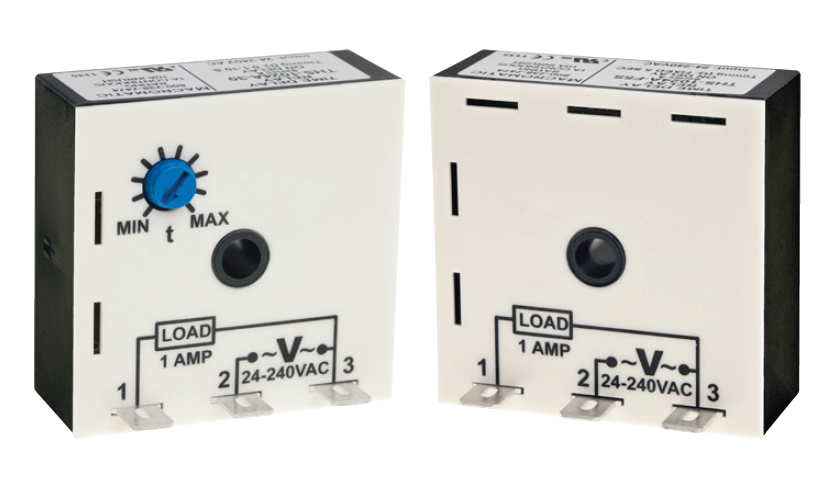

The Macromatic THS-1614A-36 is a time delay relay with 1A SPST-NO output and rated 1 A continuous, 10 A inrush at 65 °C, pilot duty, driven by a 24-240V AC input.
It is adjustable from 10 to 1,000 s and set by an onboard knob.
It is a Delayed Interval timer.
Upon application of input voltage, the time delay (t1) begins. At the end of the time delay (t1), the output is energized and remains in that condition for the time delay (t2). At the end of this time delay (t2), the output is de-energized. Input voltage must be removed to reset the time delay relay.
It has Surface Mounting and 0.250" (6.3mm) quick-connect terminals.
Product Videos
Custom Field
product_attributes_title_07 Output Rating
product_attributes_value_07 1 A continuous, 10 A inrush at 65 °C, pilot duty
product_attributes_title_08 Input Voltage
product_attributes_value_08 24-240V AC
product_attributes_title_09 Termination Style
product_attributes_value_09 Quick Connect - 0.250" (6.3mm)
product_attributes_title_10 Mounting Type
product_attributes_value_10 Surface Mount
product_attributes_title_11 Operating Temperature
product_attributes_value_11 -28...+65 °C (-40...+85 °C)
product_attributes_title_12 Approvals
product_attributes_value_12 UL Recognized (E236146)
product_attributes_title_13 Setting Accuracy (%)
product_attributes_value_13 Maximum setting +5%/-0%, minimum setting +0%/-50%
product_attributes_title_14 Repeatability (%)
product_attributes_value_14 +0.1% or +0.04 s, whichever is greater, at constant voltage and temperature
product_attributes_title_15 Start-Up Time
product_attributes_value_15 0.05 s
product_attributes_title_16 Maintain Function Time
product_attributes_value_16 0.01 s
product_attributes_title_17 Input Operating Range
product_attributes_value_17 +10%/-15% of nominal, AC at 50/60 Hz and DC
product_attributes_title_18 Rated Power
product_attributes_value_18 1 VA
model THS-1
accessories 294828
