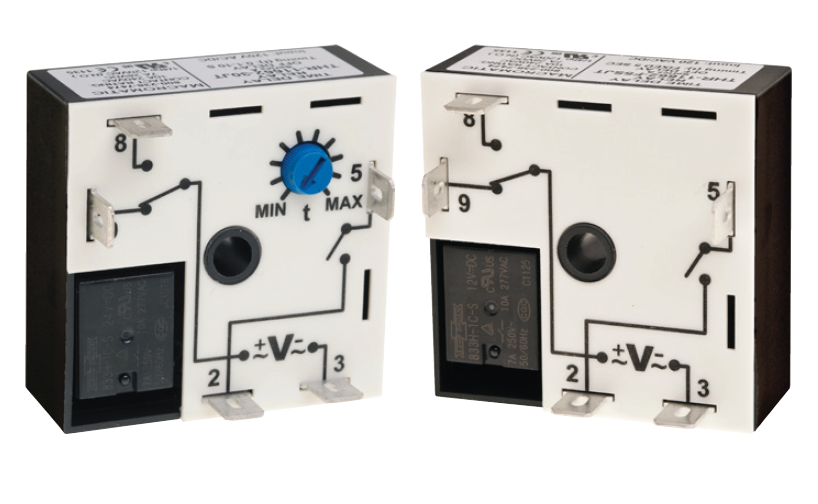

    Macromatic THR-16166-30J

    Manufacturer Macromatic
    Manufacturer Product Number THR-16166-30J
    Description Time Delay Relay; 0.1...10 s; Delayed Interval; 12V DC; Rly Com Pin 2; 1C SPDT
    Datasheet Download Datasheet

    This item is out of stock. Please submit an RFQ or call 800-526-5376 for pricing and delivery.

    Bulk Pricing

    Qty.Price
    1 $52.02
    5 $48.02
    10 $46.24
    25 $44.59
    50 $43.05
    100 $41.61
    product_attributes_title_07:
    Contact Configuration
    product_attributes_value_07:
    1C SPDT
    product_attributes_title_08:
    Output Rating
    product_attributes_value_08:
    10 A at 240 V AC, 7 A at 28 V DC
    product_attributes_title_09:
    Input Voltage
    product_attributes_value_09:
    12V DC
    product_attributes_title_10:
    Termination Style
    product_attributes_value_10:
    Quick Connect - 0.250" (6.3mm)
    product_attributes_title_11:
    Mounting Type
    product_attributes_value_11:
    Surface Mount
    product_attributes_title_12:
    Operating Temperature
    product_attributes_value_12:
    -28...+65 °C (-45...+85 °C)
    product_attributes_title_13:
    Approvals
    product_attributes_value_13:
    UL Recognized (E109466)
    product_attributes_title_14:
    Setting Accuracy (%)
    product_attributes_value_14:
    Maximum setting +5%/-0%, minimum setting +0%/-50%
    product_attributes_title_15:
    Repeatability (%)
    product_attributes_value_15:
    +0.1% or +0.04 s, whichever is greater, at constant voltage and temperature
    product_attributes_title_16:
    Start-Up Time
    product_attributes_value_16:
    0.05 s
    product_attributes_title_17:
    Maintain Function Time
    product_attributes_value_17:
    0.01 s
    product_attributes_title_18:
    Mechanical Life
    product_attributes_value_18:
    10,000,000 cycles (100,000 cycles)
    product_attributes_title_19:
    Input Operating Range
    product_attributes_value_19:
    +10%/-15% of nominal, AC at 50/60 Hz and DC
    product_attributes_title_20:
    Rated Power
    product_attributes_value_20:
    2 VA
    model:
    THR-1

    Product Description

    The Macromatic THR-16166-30J is a time delay relay with 1C SPDT output and rated 10 A at 240 V AC, 7 A at 28 V DC, driven by a 12V DC input.

    It is adjustable from 0.1 to 10 s and set by an onboard knob.

    It is a Delayed Interval timer.

    Upon application of input voltage, the time delay (t1) begins. At the end of the time delay (t1), the output is energized and remains in that condition for the time delay (t2). At the end of this time delay (t2), the output is de-energized. Input voltage must be removed to reset the time delay relay.

    Build option: relay common internally connected to pin 2.

    It has Surface Mounting and 0.250" (6.3mm) quick-connect terminals.
