To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Macromatic |
| Model | THR-1 |
| Manufacturer Product Number | THR-16162-34J |
| Description | Time Delay Relay; 0.1...10 h; Delayed Interval; 120V AC/DC; Rly Com Pin 2; 1C SPDT |
| Datasheet | Download Datasheet |

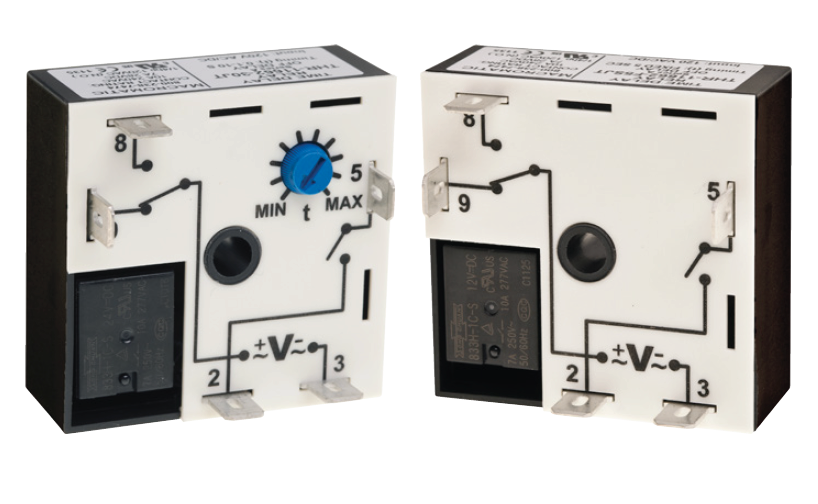

The Macromatic THR-16162-34J is a time delay relay with 1C SPDT output and rated 10 A at 240 V AC, 7 A at 28 V DC, driven by a 120V AC/DC input.
It is adjustable from 0.1 to 10 h and set by an onboard knob.
It is a Delayed Interval timer.
Upon application of input voltage, the time delay (t1) begins. At the end of the time delay (t1), the output is energized and remains in that condition for the time delay (t2). At the end of this time delay (t2), the output is de-energized. Input voltage must be removed to reset the time delay relay.
Build option: relay common internally connected to pin 2.
It has Surface Mounting and 0.250" (6.3mm) quick-connect terminals.
