To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Macromatic |
| Model | THR-1 |
| Manufacturer Product Number | THR-11266-F5ST |
| Description | Time Delay Relay; 5 s, fixed; On Delay (Switch Trigger); 12V DC; 1-Pin Trigger; 1C SPDT |
| Datasheet | Download Datasheet |

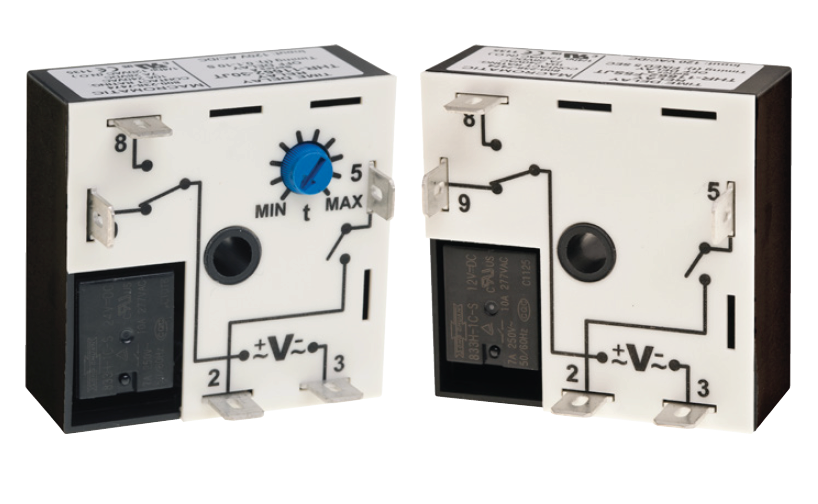

The Macromatic THR-11266-F5ST is a time delay relay with 1C SPDT output and rated 10 A at 240 V AC, 7 A at 28 V DC, driven by a 12V DC input.
It has a fixed delay of 5 s, set at the factory.
It is an On Delay (Switch Trigger) timer.
Upon application of control voltage, the time delay is ready to accept a trigger. When the trigger is applied, the time delay (t) begins. At the end of the time delay (t), the output is energized and remains in that condition as long as both the trigger and control voltage remain. If the trigger is removed during the time delay (t), the output remains de-energized & the time delay (t) is reset.
It is started by a control switch.
Build option: control switch common to pin 2 (single-pin trigger).
It has Surface Mounting and 0.250" (6.3mm) quick-connect terminals.
| Category | |
| Manufacturer | Macromatic |
