To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Macromatic |
| Manufacturer Product Number | THR-14162-35T |
| Description | Time Delay Relay; 1...100 h; Trig. On Delay/Off Delay; 120V AC/DC; 1-Pin Trigger |
| Datasheet | Download Datasheet |

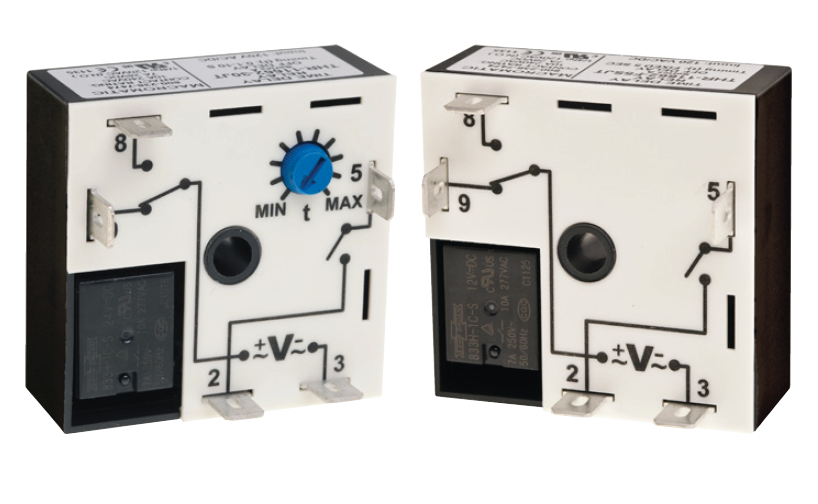

The Macromatic THR-14162-35T is a time delay relay with 1C SPDT output and rated 10 A at 240 V AC, 7 A at 28 V DC, driven by a 120V AC/DC input.
It is adjustable from 1 to 100 h and set by an onboard knob.
It is an On Delay / Off Delay (Switch Trigger) timer.
Upon application of control voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the time delay (t1) begins. At the end of the time delay (t1), the output is energized. When the trigger is removed, the output contacts remain energized for the time delay (t2). At the end of the time delay (t2), the output is de-energized & the time delay relay is ready to accept another trigger. If the trigger is removed during time delay period (t1), the output will remain de-energized and time delay (t1) will reset. If the trigger is re-applied during time delay period (t2), the output will remain energized and the time delay (t2) will reset.
It is started by a control switch.
Build option: control switch common to pin 2 (single-pin trigger).
It has Surface Mounting and 0.250" (6.3mm) quick-connect terminals.
| Category | |
| Manufacturer | Macromatic |
| Model | THR-1 |
| Output Technology | Electromechanical Relay |
| Timing Function | On Delay / Off Delay (Switch Trigger) |
| Delay Time | 1...100 h |
| Timing Adjustment Method | Onboard knob |
| Options | Control switch common to pin 2 (single-pin trigger) |
| Timing Initiate Method | Control Switch |
| Contact Configuration | 1C SPDT |
| Output Rating | 10 A at 240 V AC, 7 A at 28 V DC |
| Input Voltage | 120V AC/DC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -28...+65 °C (-45...+85 °C) |
| Approvals | UL Recognized (E109466) |
| Setting Accuracy (%) | Maximum setting +5%/-0%, minimum setting +0%/-50% |
| Repeatability (%) | +0.1% or +0.04 s, whichever is greater, at constant voltage and temperature |
| Start-Up Time | 0.05 s |
| Maintain Function Time | 0.01 s |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
| Input Operating Range | +10%/-15% of nominal, AC at 50/60 Hz and DC |
| Rated Power | 2 VA |
