| Manufacturer | Macromatic |
| Manufacturer Product Number | THR-10268-F5S |
| Description | TDR; 5 s, fixed; On Delay; 24V AC/DC; 1C SPDT; QC 0.250"; Surface Mount |
| Datasheet | Download Datasheet |

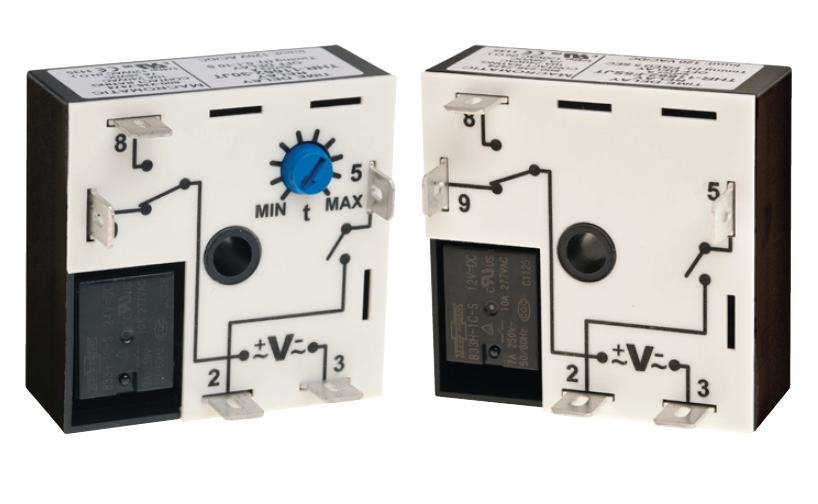

The Macromatic THR-10268-F5S is a time delay relay with 1C SPDT output and rated 10 A at 240 V AC, 7 A at 28 V DC, driven by a 24V AC/DC input.
It has a fixed delay of 5 s, set at the factory.
It is an On Delay timer.
Upon application of control voltage, the time delay (t) begins. At the end of the time delay (t), the output is energized. Control voltage must be removed to reset the time delay relay & de-energize the output.
It has Surface Mounting and 0.250" (6.3mm) quick-connect terminals.
| Category | |
| Manufacturer | Macromatic |
| Model | THR-1 |
| Output Technology | Electromechanical Relay |
| Timing Function | On Delay |
| Delay Time | 5 s, fixed |
| Timing Adjustment Method | Fixed, factory set |
| Timing Initiate Method | Input Voltage |
| Contact Configuration | 1C SPDT |
| Output Rating | 10 A at 240 V AC, 7 A at 28 V DC |
| Input Voltage | 24V AC/DC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -28...+65 °C (-45...+85 °C) |
| Approvals | UL Recognized (E109466) |
| Setting Accuracy (%) | +2% or 50 ms, whichever is greater |
| Repeatability (%) | +0.1% or +0.04 s, whichever is greater, at constant voltage and temperature |
| Start-Up Time | 0.05 s |
| Maintain Function Time | 0.01 s |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
| Input Operating Range | +10%/-15% of nominal, AC at 50/60 Hz and DC |
| Rated Power | 2 VA |
