Product Description

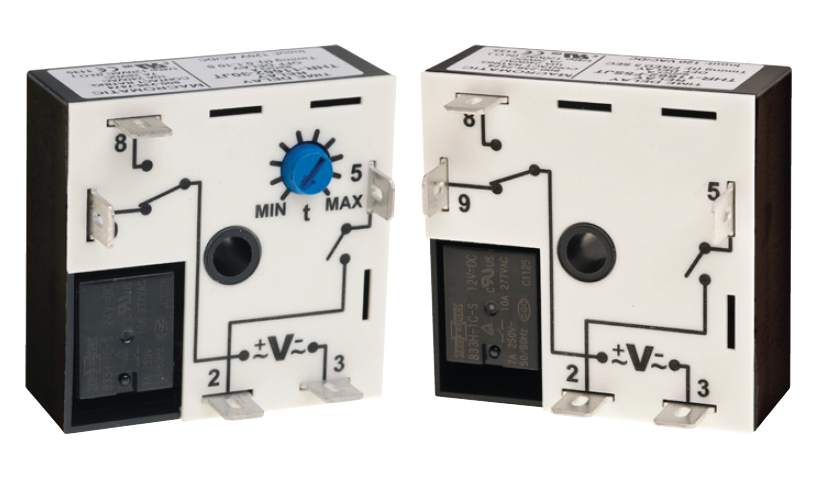

The Macromatic THR-10261-35J is a time delay relay with 1C SPDT output and rated 10 A at 240 V AC, 7 A at 28 V DC, driven by a 240V AC input.
It is adjustable from 1 to 100 h and set by an onboard knob.
It is an On Delay timer.
Upon application of control voltage, the time delay (t) begins. At the end of the time delay (t), the output is energized. Control voltage must be removed to reset the time delay relay & de-energize the output.
Build option: relay common internally connected to pin 2.
It has Surface Mounting and 0.250" (6.3mm) quick-connect terminals.
Product Videos
Custom Field
product_attributes_title_07 Contact Configuration
product_attributes_value_07 1C SPDT
product_attributes_title_08 Output Rating
product_attributes_value_08 10 A at 240 V AC, 7 A at 28 V DC
product_attributes_title_09 Input Voltage
product_attributes_value_09 240V AC
product_attributes_title_10 Termination Style
product_attributes_value_10 Quick Connect - 0.250" (6.3mm)
product_attributes_title_11 Mounting Type
product_attributes_value_11 Surface Mount
product_attributes_title_12 Operating Temperature
product_attributes_value_12 -28...+65 °C (-45...+85 °C)
product_attributes_title_13 Approvals
product_attributes_value_13 UL Recognized (E109466)
product_attributes_title_14 Setting Accuracy (%)
product_attributes_value_14 Maximum setting +5%/-0%, minimum setting +0%/-50%
product_attributes_title_15 Repeatability (%)
product_attributes_value_15 +0.1% or +0.04 s, whichever is greater, at constant voltage and temperature
product_attributes_title_16 Start-Up Time
product_attributes_value_16 0.05 s
product_attributes_title_17 Maintain Function Time
product_attributes_value_17 0.01 s
product_attributes_title_18 Mechanical Life
product_attributes_value_18 10,000,000 cycles (100,000 cycles)
product_attributes_title_19 Input Operating Range
product_attributes_value_19 +10%/-15% of nominal, AC at 50/60 Hz and DC
product_attributes_title_20 Rated Power
product_attributes_value_20 2 VA
