To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Macromatic |
| Model | THR-1 |
| Manufacturer Product Number | THR-10261-32J |
| Description | Time Delay Relay; 0.1...10 min; On Delay; 240V AC; Rly Com Pin 2; 1C SPDT |
| Datasheet | Download Datasheet |

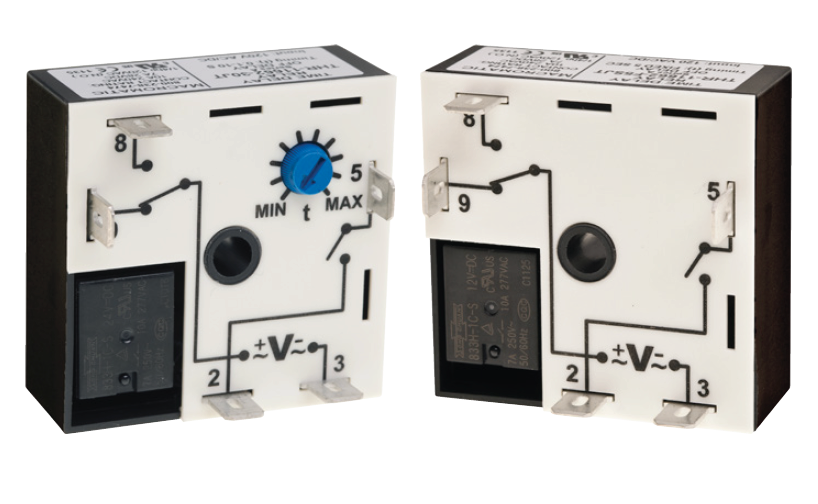

The Macromatic THR-10261-32J is a time delay relay with 1C SPDT output and rated 10 A at 240 V AC, 7 A at 28 V DC, driven by a 240V AC input.
It is adjustable from 0.1 to 10 min and set by an onboard knob.
It is an On Delay timer.
Upon application of control voltage, the time delay (t) begins. At the end of the time delay (t), the output is energized. Control voltage must be removed to reset the time delay relay & de-energize the output.
Build option: relay common internally connected to pin 2.
It has Surface Mounting and 0.250" (6.3mm) quick-connect terminals.
