To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Macromatic |
| Model | THS-1 |
| Manufacturer Product Number | THS-1164A-37 |
| Description | TDR; 10...1,000 min; Off Delay; 24-240V AC; 1A SPST-NO; QC 0.250"; Surface Mount |
| Datasheet | Download Datasheet |

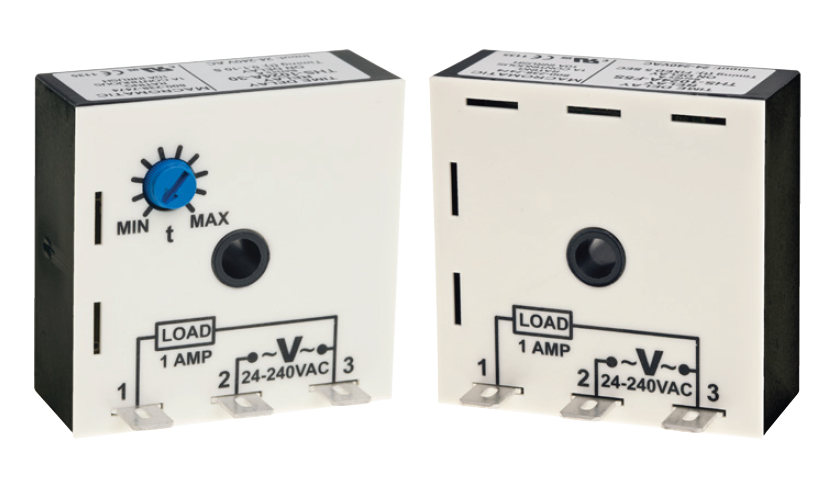

The Macromatic THS-1164A-37 is a time delay relay with 1A SPST-NO output and rated 1 A continuous, 10 A inrush at 65 °C, pilot duty, driven by a 24-240V AC input.
It is adjustable from 10 to 1,000 min and set by an onboard knob.
It is an Off Delay timer.
Upon application of control voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the output is energized. Upon removal of the trigger, the time delay (t) begins. At the end of the time delay (t), the output is de-energized. Any application of the trigger during the time delay will reset the time delay (t) and the output remains energized.
It is started by a control switch.
It has Surface Mounting and 0.250" (6.3mm) quick-connect terminals.
| Category | |
| Manufacturer | Macromatic |
