To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Macromatic |
| Model | THR-1 |
| Manufacturer Product Number | THR-11668-30J |
| Description | Time Delay Relay; 0.1...10 s; Off Delay; 24V AC/DC; Rly Com Pin 2; 1C SPDT |
| Datasheet | Download Datasheet |

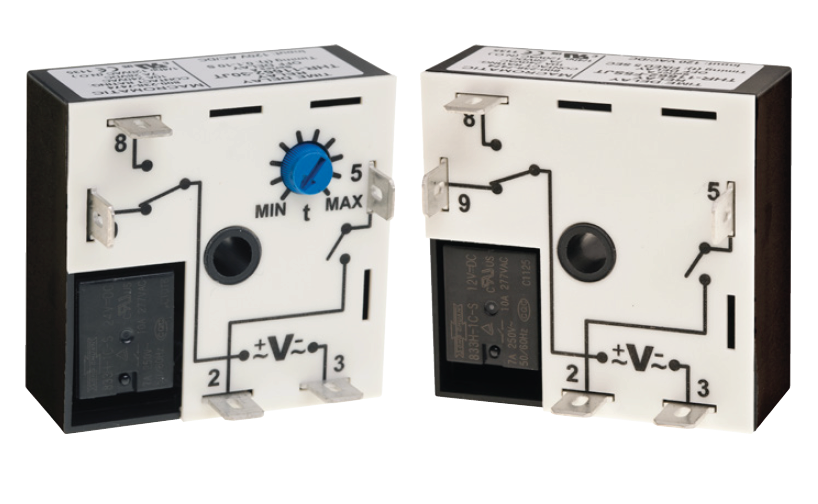

The Macromatic THR-11668-30J is a time delay relay with 1C SPDT output and rated 10 A at 240 V AC, 7 A at 28 V DC, driven by a 24V AC/DC input.
It is adjustable from 0.1 to 10 s and set by an onboard knob.
It is an Off Delay timer.
Upon application of control voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the output is energized. Upon removal of the trigger, the time delay (t) begins. At the end of the time delay (t), the output is de-energized. Any application of the trigger during the time delay will reset the time delay (t) and the output remains energized.
It is started by a control switch.
Build option: relay common internally connected to pin 2.
It has Surface Mounting and 0.250" (6.3mm) quick-connect terminals.
