Product Description

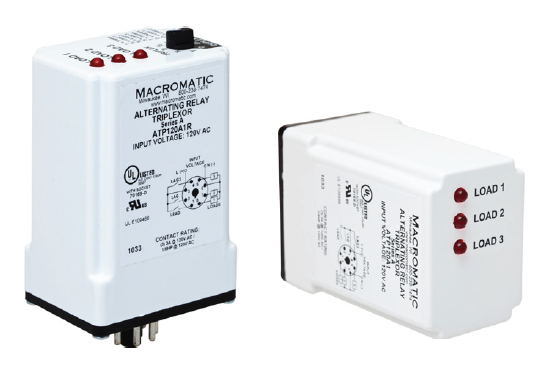

Description: Alternating Sequencing Relay • Coil Voltage: 24 VAC/VDC • Contact Configuration: 3A SPST-NO (3) • Output Current: 3 Amps • Mounting: 12 Pin Plug-in • Selector Switch: Yes • LED Indication: One of the Red LED's will be steady ON to indicate which Load will be energized first; all will flash (3 in Triplex mode or 2 only in Duplex mode) to indicate a switch out-of-sequence error.
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 24 VAC/VDC |
| Contact Configuration | 3A SPST-NO (3) |
| Output Current | 3 Amps |
| Mounting | 12 Pin Plug-in |
| Selector Switch | Yes |
| LED Indication | One of the Red LED's will be steady ON to indicate which Load will be energized first; all will flash (3 in Triplex mode or 2 only in Duplex mode) to indicate a switch out-of-sequence error. |
| Life | Mechanical: 10,000,000 operations; Full Load: 100,000 operations |
| Load (Burden) | Less than 2VA for all voltages |
| Output Contacts | (3) SPNO 3A @ 24/120V AC General Purpose; C300 Pilot Duty; 1/6HP @ 24/120VAC |
| Temperature | -28 to 65 C (-18 to 149 F) |
| Time Delay | If power is lost & returns with more than just the LEAD Switch closed, there is a fixed 10 second delay between energization of the second output (Triplex & Duplex mode) & third output (Triplex mode only) to prevent all Loads from coming on at the same time. |
| Voltage Tolerances | +10%/-15% at 50/60Hz. (AC); +10%/-15% of control voltage (DC) |
| Series Features |
| ATP Series TRIPLEXOR |
| Series Description: Macromatic ATP Series Triplexors are used in three load applications requiring both the optimization of load usage by equalizing the run time of multiple loads and additional capacity in case of excess load requirements. As standard, these products operate as a normal Triplexor with three inputs. An optional version with an 8-position rotary switch is offered. This allows the unit to operate as either a: (a) standard Triplexor (b) Triplexor locking Load 1, 2 or 3 as the first to be energized (Lead Load) (c) standard Duplexor until system expansion requires control for a third Load (d) Duplexor locking Load 1 or 2 as the first to be energized (Lead Load) All versions offer an indication of a switch failure (out-of-sequence) - LEDs will flash if any switch closes out of sequence. Also, if power is lost and returns with more than just the LEAD Switch closed, there is a fixed 10 second delay between energization of the first output and subsequent outputs to prevent all Loads from coming on at the same time. |
|
