Pilot Duty: 480 VA @ 240 Vac; General Purpose: 10 A @ 240 Vac
Restart Delay Range
2 s
Trip Delay Range
Under/Over Voltage: 4 s; Unbalance/Phase faults: 2 s
Trip Point Accuracy (%)
±1%
Undervoltage Trip Voltage
0.9
Undervoltage Reset Voltage (%)
0.93
Voltage Unbalance Trip Point (%)
0.06
Voltage Unbalance Reset (%)
0.045
Termination Type
Torque: 12 in-lbs.; 12 - 22 AWG solid or stranded
Mounting Method
DIN rail or surface mount (plug into OT08-PC socket)
Operating Temperature
-20° to 70°C (-4° to 158°F)
Humidity
10 - 95% non-condensing per IEC 68-2-3
Dimensions
1.75 H x 2.38 W x 4.13 D in. (44.5 x 60.3 x 104.8 mm)
Series Features
201A Series - 3-Phase Voltage/Phase Monitor

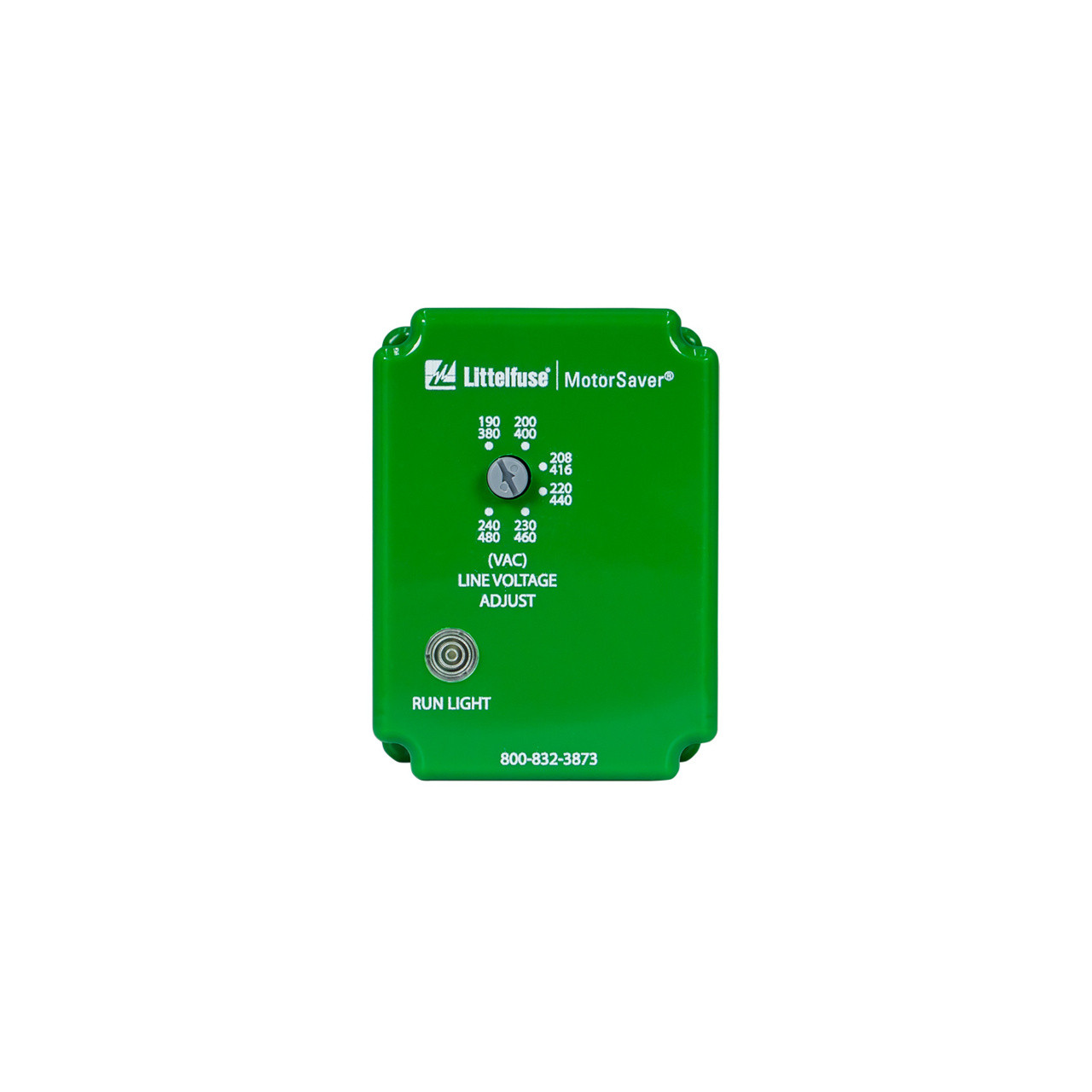

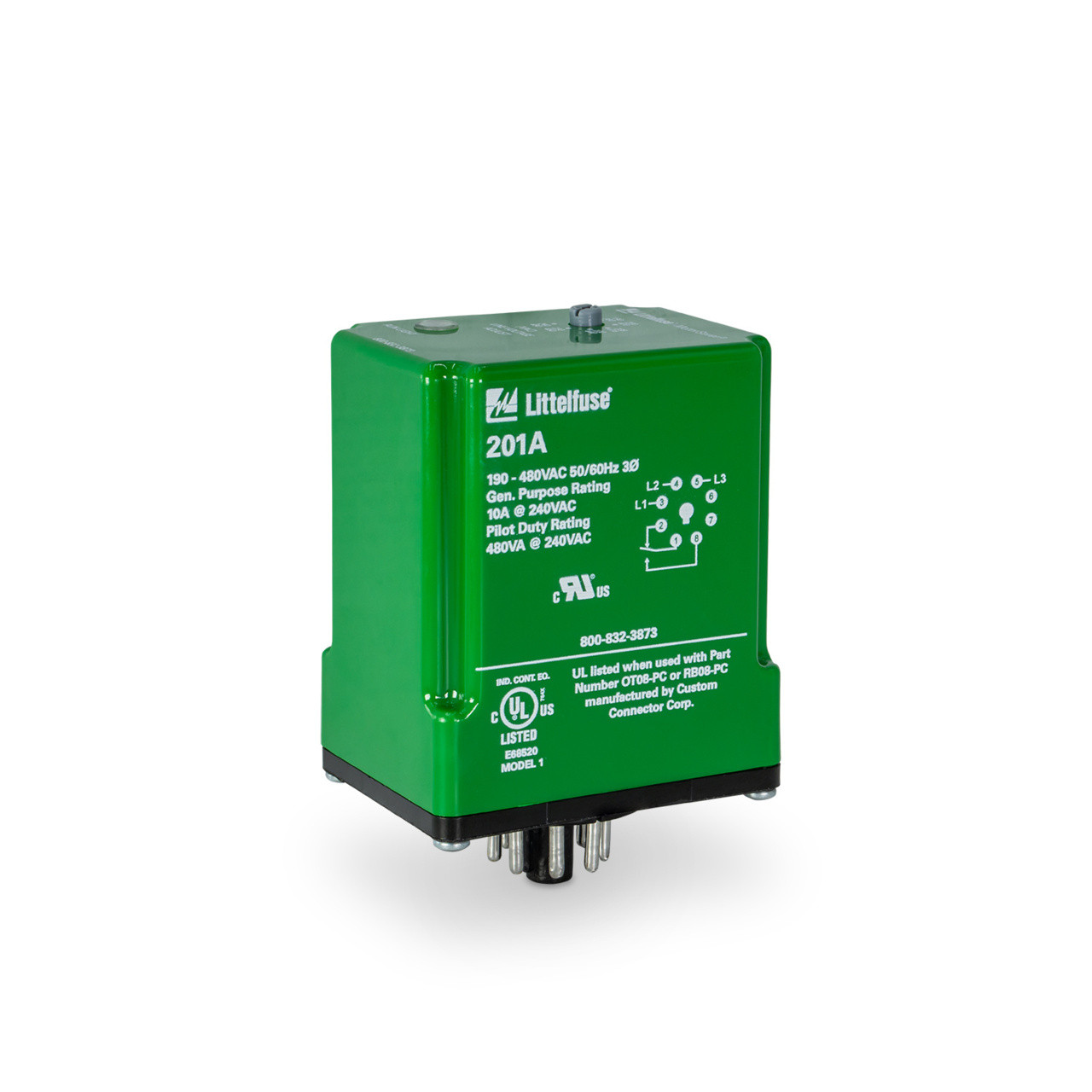

Series Description:The 201A series is a three-phase, auto-ranging, dual-range voltage monitor that protects 190480 V ac, 50*/60 Hz motors regardless of their size. This monitor provides a user-selectable nominal voltage setpoint and will automatically select between the 200 V and 400 V range. It includes advanced, single LED diagnostics where color and light patterns distinguish between faults and normal conditions. This unique microcontroller-based voltage and phase-sensing unit constantly monitors the three-phase voltages to detect harmful power line conditions. When a harmful condition is detected, the output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to acceptable levels for a specified restart delay time.
Series Applications:Fan motors, Air conditioners, Compressors, Heat, well, and sump pumps, Small conveyer motors
Proprietary microcontroller-based circuitry: Constant monitoring of single-phase, low-voltage, voltage unbalance, phase reversal, power line conditions high-voltage monitoring is optional
Auto-sensing wide voltage range: Automatically senses system voltage between 190480 V ac. Saves setup time
Advanced LED diagnostics: LED indications include: normal operation, power-up restart delay, reverse-phase trip, unbalance/single-phase trip, high/low voltage trip
Compact design for 8-pin; DIN-rail or surface mount: Allows flexibility in panel installation
