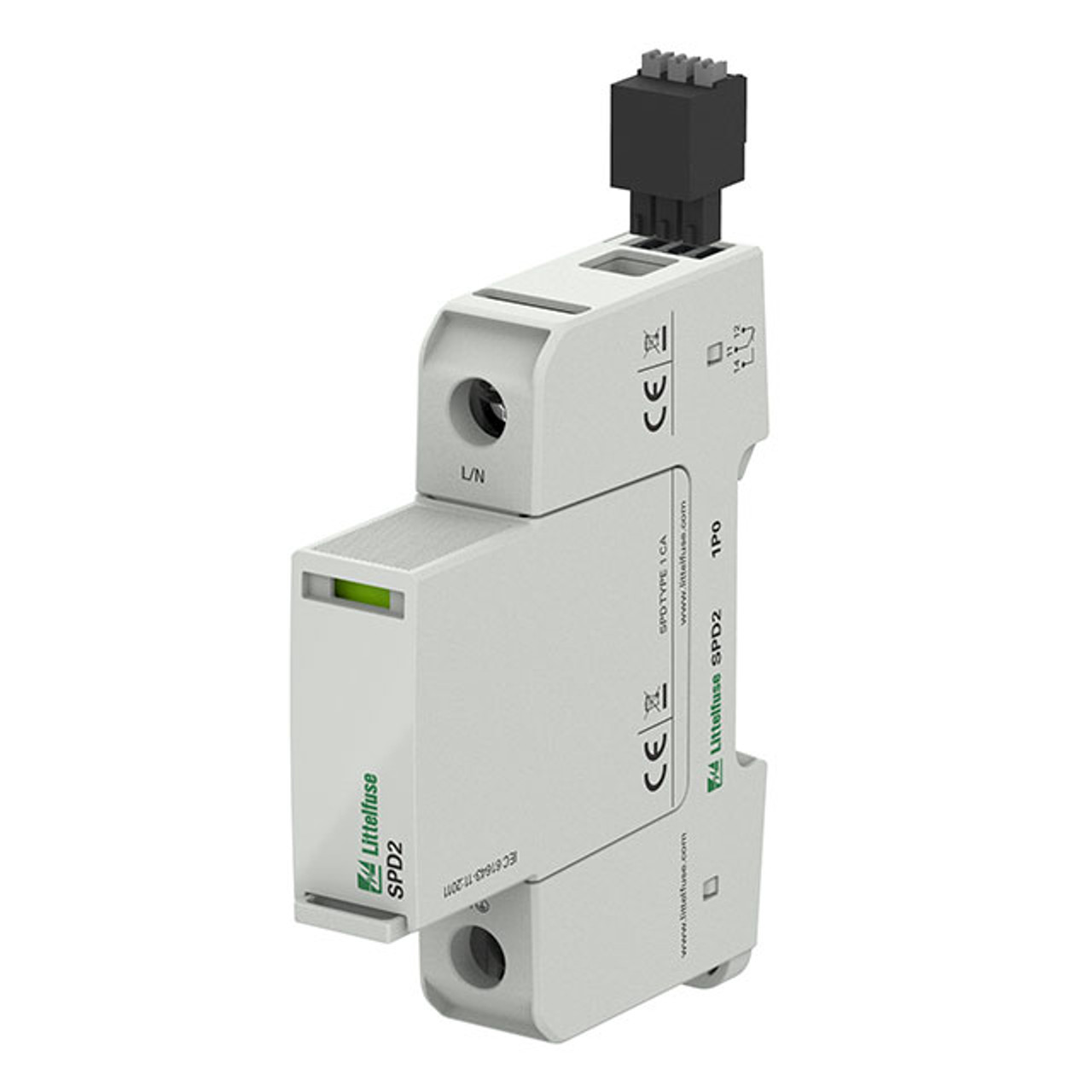

Product Description
Description: Transient Voltage Suppressor • Surge Protection Device • Type: Type 1, Type 2 • Form; Base + Module • Number of Poles; 1 • Voltage - Continuous Operating (Max) (MCOV); 150VAC • Features; Remote Signaling Contacts, Thermally Protected • Mounting Type; DIN Rail
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Type | Type 1, Type 2 |
| Form | Base + Module |
| Number of Poles | 1 |
| Voltage - Continuous Operating (Max) (MCOV) | 150VAC |
| Current - Discharge (Nom) (8/20µS) | 20 kA |
| Current - Discharge (Max) (8/20µS) | 50 kA |
| Current - Short Circuit Rating (SCCR) | 200 kA |
| 600 V | |
| Voltage - Protection Level (VP) (2416) | 1.25 kV |
| -40°C ~ 80°C | |
| Features | Remote Signaling Contacts, Thermally Protected |
| DIN Rail | |
| Approval Agency | CE, cURus, UL, VDE |
| Series Features |
| SPD2 1P+0 Series – Class II Type 2/Type 1 Pluggable SPD |
| Series Description: The SPD2 1P+0 series is a surge protection device that safeguards components from transient overvoltage or surges that last micro-seconds by limiting the fault current to a load or the unit being protected. The majority of surges are caused by equipment being turned on or off within a facility. By limiting these surges, costly damage, downtime, repairs, and missed deadlines can be mitigated. The surge protection devices for the 1+0 configuration are available for 60 V to 600 V nominal voltage sub-distribution board applications. |
|
