To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Startco / Littelfuse |
| Manufacturer Product Number | SE-325E |
| Description | Ground Fault Relay; 240 Vac; Form A; Surface |
| Datasheet | Download Datasheet |

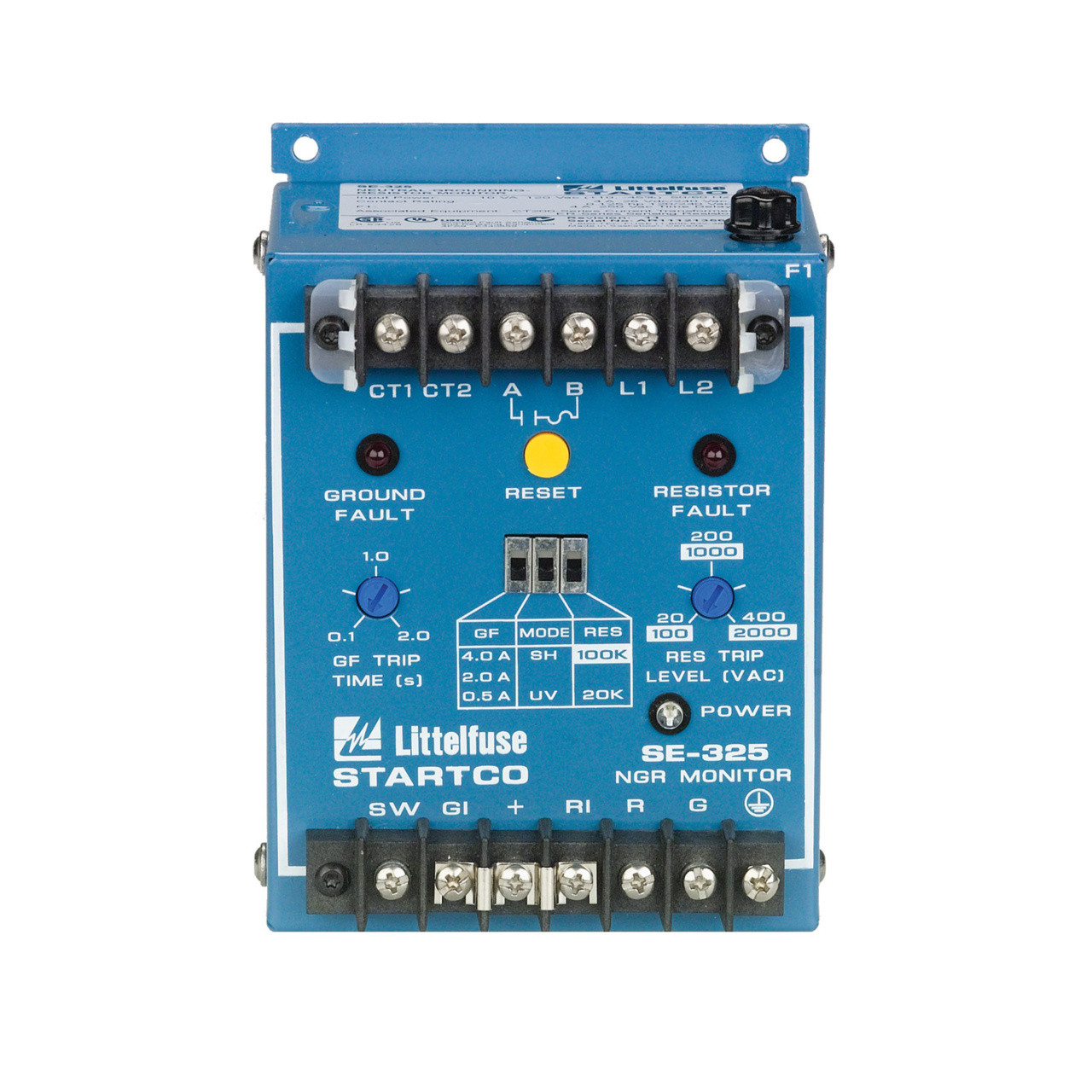

The Littelfuse Startco SE-325E is a neutral-grounding-resistor monitor with a 240 Vac supply.
It monitors integrity of the neutral-to-ground path (NGR continuity, neutral current and voltage) and detects ground faults; one alarm or trip output contact.
Settings: GF trip level 0.5-4.0 A; GF trip time 0.1-2.0 s; RF trip level 20-400 Vac (≤5 kV systems), 100-2,000 Vac (>5 kV systems). Applications: resistance-grounded systems up to 25 kV. Sensing: CT200 series (required); ER series (required).
Outputs: Form A.
Mounting: surface. Size: H 150 mm (5.9"); W 109 mm (4.3"); D 100 mm (4.0"). Conformally coated as standard.
Approvals: CSA certified, UL Listed (E340889), C-Tick (Australian).
| Category | |
| Manufacturer | Startco / Littelfuse |
| Model | SE-325 |
| Monitoring Function | Monitors integrity of the neutral-to-ground path (NGR continuity, neutral current and voltage) and detects ground faults; one alarm or trip output contact |
| System Voltage | Resistance-grounded systems up to 25 kV |
| Ground Fault Current Range | GF trip level 0.5-4.0 A; GF trip time 0.1-2.0 s; RF trip level 20-400 Vac (≤5 kV systems), 100-2,000 Vac (>5 kV systems) |
| Required Accessories | CT200 Series (Required); ER Series (Required) |
| Input Voltage | 240 Vac |
| IEEE Device Numbers | Ground Fault (50G/N, 51G/N), Overvoltage (59N), Lockout Relay (86), Checking Relay (3) |
| Conformal Coating | Standard feature |
| Contact Configuration | Form A |
| Mounting Type | Surface |
| Dimensions | H 150 mm (5.9"); W 109 mm (4.3"); D 100 mm (4.0") |
| Approvals | CSA certified, UL Listed (E340889), C-Tick (Australian) |
