| Manufacturer | Startco / Littelfuse |
| Manufacturer Product Number | EL3100-00 |
| Description | Ground Fault Relay; DIN, Surface |
| Datasheet | Download Datasheet |

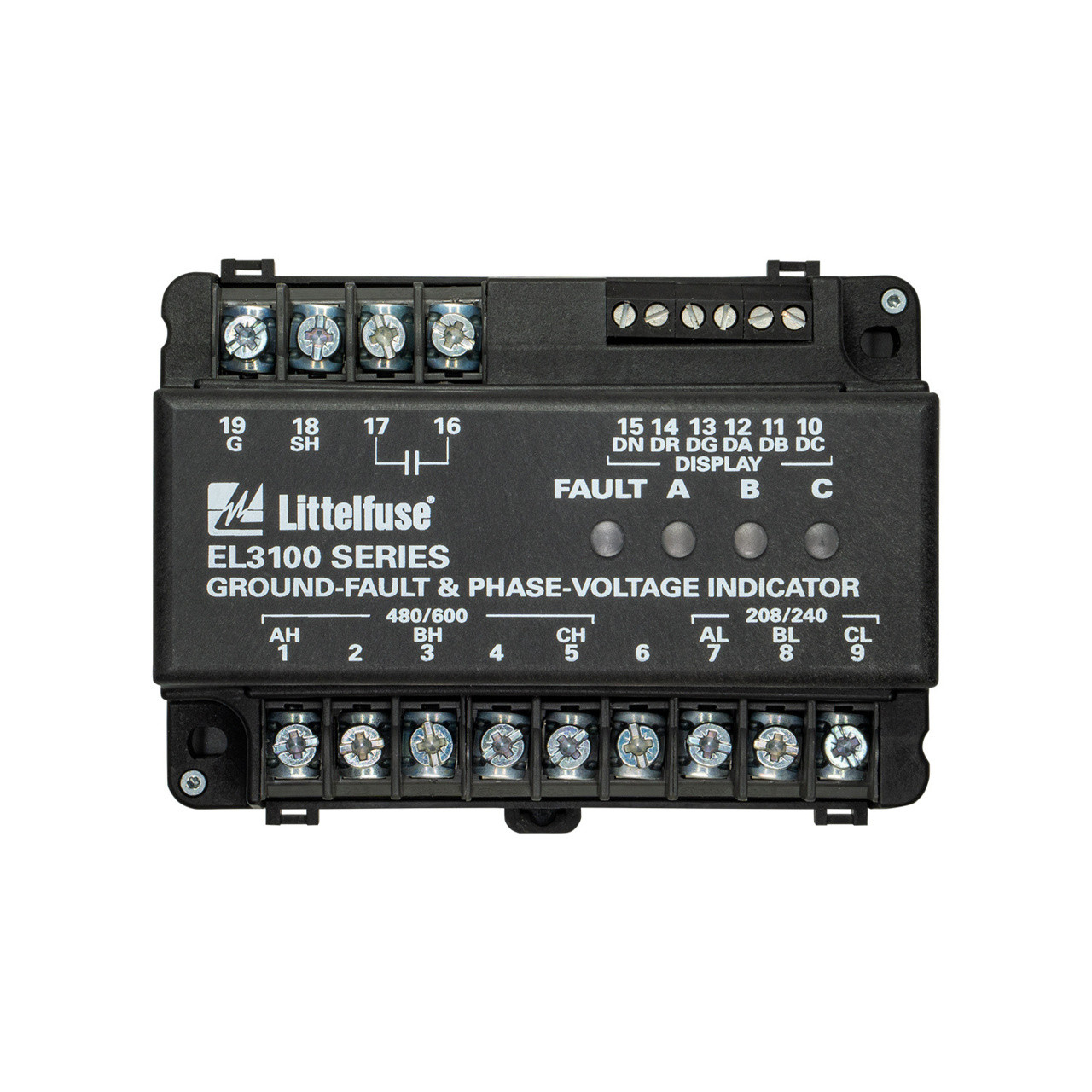

The Littelfuse Startco EL3100-00 is a ground-fault and phase-voltage indicator.
Protection functions (IEEE device numbers): Ground-fault and phase-voltage indication for 3-phase grounded/ungrounded AC systems; ground detector per NEC 250.21 / CEC Part 1 Rule 10-400 (2).
Supply: Self-powered; Input L: 208/240 Vac, Input H: 480/600 Vac.
Outputs: solid-state relay output (closed on ground fault). Indication: three green phase-to-ground voltage LEDs, one red ground-fault LED; up to five remote LED indicators.
Mounting: DIN, surface. Size: H 87.0 mm (3.43”); W 112.5 mm (4.43”); D 56.0 mm (2.2”). Conformally coated as standard.
Approvals: CSA certified, UL Listed (E340889).
| Category | |
| Manufacturer | Startco / Littelfuse |
| Model | EL3100 |
