Product Description
Littelfuse Industrial Business Unit TLS Series Fuse; Through Hole; 1A; 170 VDC; Fast Blow;100kA; Radial Bend Cylinder
Specialty Fuse • Mounting Type: Through Hole • Fuse Type: Cartridge • Current Rating (Amps): 1A • Voltage Rating - DC: 170 VDC • Response Time: Fast Blow • Package / Case: Radial Bend Cylinder • Size / Dimension: 0.563" Dia x 0.877" H (14.30mm x 22.28mm)
Product Information
| Manufacturer | Littelfuse Industrial Business Unit |
| Product Category | Fuse |
| Product Sub Category | Specialty Fuse |
| Series | TLO Series |
| Catalog Part Number | TLO030 |
| Ordering Part Number | 0TLO030.Z |
| Status | Obsolete |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Requires Holder |
| Fuse Type | Edison Plug |
| Current Rating (Amps) | 30A |
| Voltage Rating - AC | 125 VAC |
| Response Time | Medium Blow |
| Applications | Motor Protection |
| Features | - |
| Class | - |
| Approval Agency | UL |
| Breaking Capacity @ Rated Voltage | 10kA |
| Package / Case | S Type Plug |
Series Features

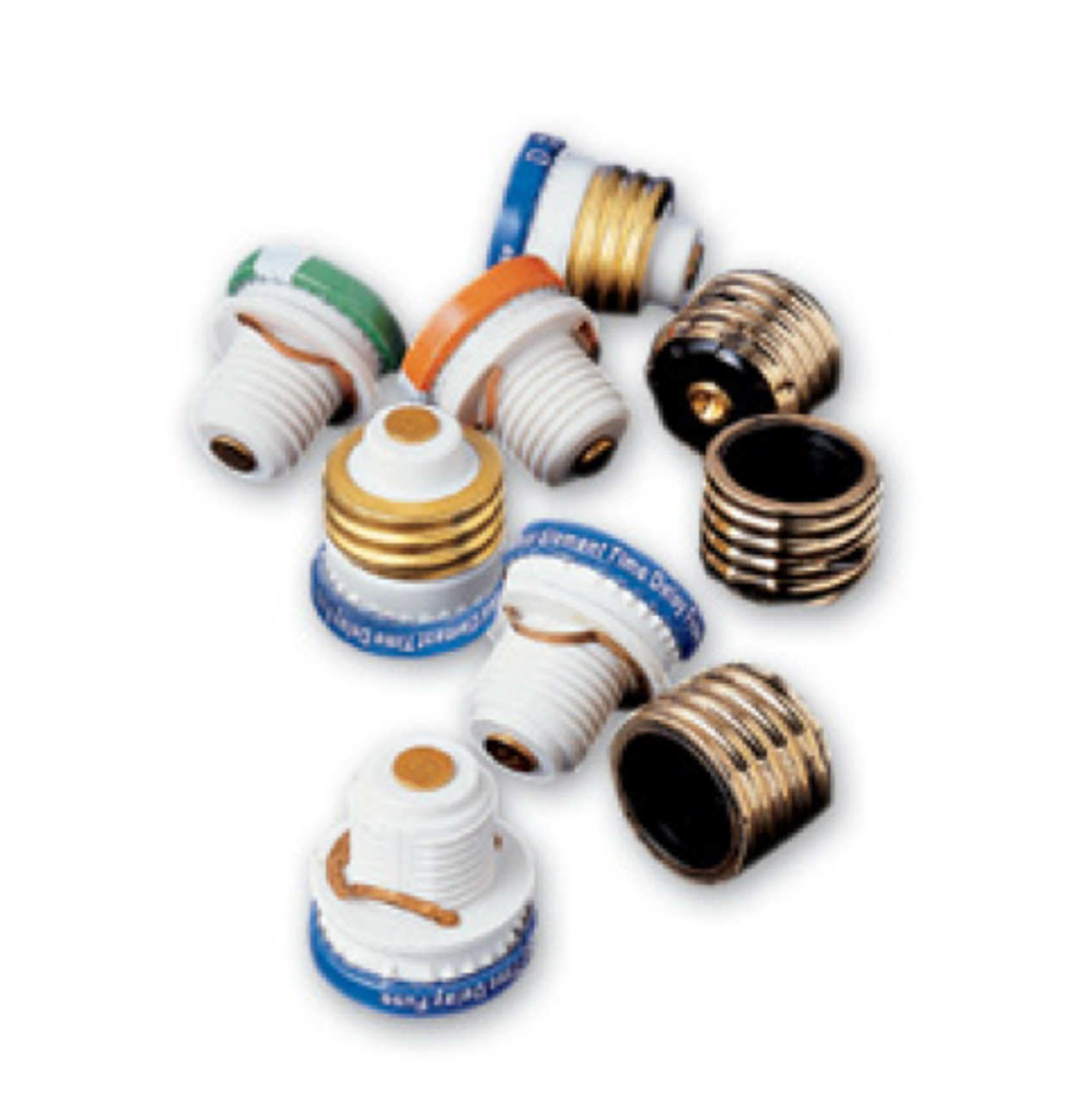

TOO, TLO, SAO, SOO & SLO SERIES PLUG FUSES 125 Vac • 4/10-30 A
Series DescriptionLittelfuse Plug fuses provide overcurrent protection to general purpose circuits and small motor loads. Edison-base Plug fuses (TOO and TLO series) feature metal threads similar to incandescent lamp bases.
Type S Plug fuses (SOO and SLO series) utilize a nonmetallic threaded base and must be used with Type S adapters (SAO series).
The National Electrical Code permits Edison base Plug fuses to be used for replacement purposes only. Type S fuses and adapters prevent shunting open fuses and over-fusing.
