Product Description
Littelfuse Industrial Business Unit SPF Series Solar Fuse; Requires Holder; 1A; 1 kVDC; Fast Blow; 5AG, 10mm x 38mm (Midget)
Cylindrical Fuse • Mounting Type: Requires Holder • Fuse Type: Cartridge • Current Rating (Amps): 1A • Voltage Rating - DC: 1 kVDC • Response Time: Fast Blow • Package / Case: 5AG, 10mm x 38mm (Midget) • Size / Dimension: 0.406" Dia x 1.500" L (10.31mm x 38.10mm)
Product Information
| Manufacturer | Littelfuse Industrial Business Unit |
| Product Category | Fuse |
| Product Sub Category | Specialty Fuse |
| Series | SOO Series |
| Catalog Part Number | SOO6.25 |
| Ordering Part Number | 0SOO6.25Z |
| Status | Obsolete |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Requires Holder |
| Fuse Type | Edison Plug |
| Current Rating (Amps) | 6.25A |
| Voltage Rating - AC | 125 VAC |
| Response Time | Slow Blow |
| Applications | Motor Protection |
| Features | - |
| Class | - |
| Approval Agency | UL |
| Breaking Capacity @ Rated Voltage | 10kA |
| Package / Case | S Type Plug |
Series Features

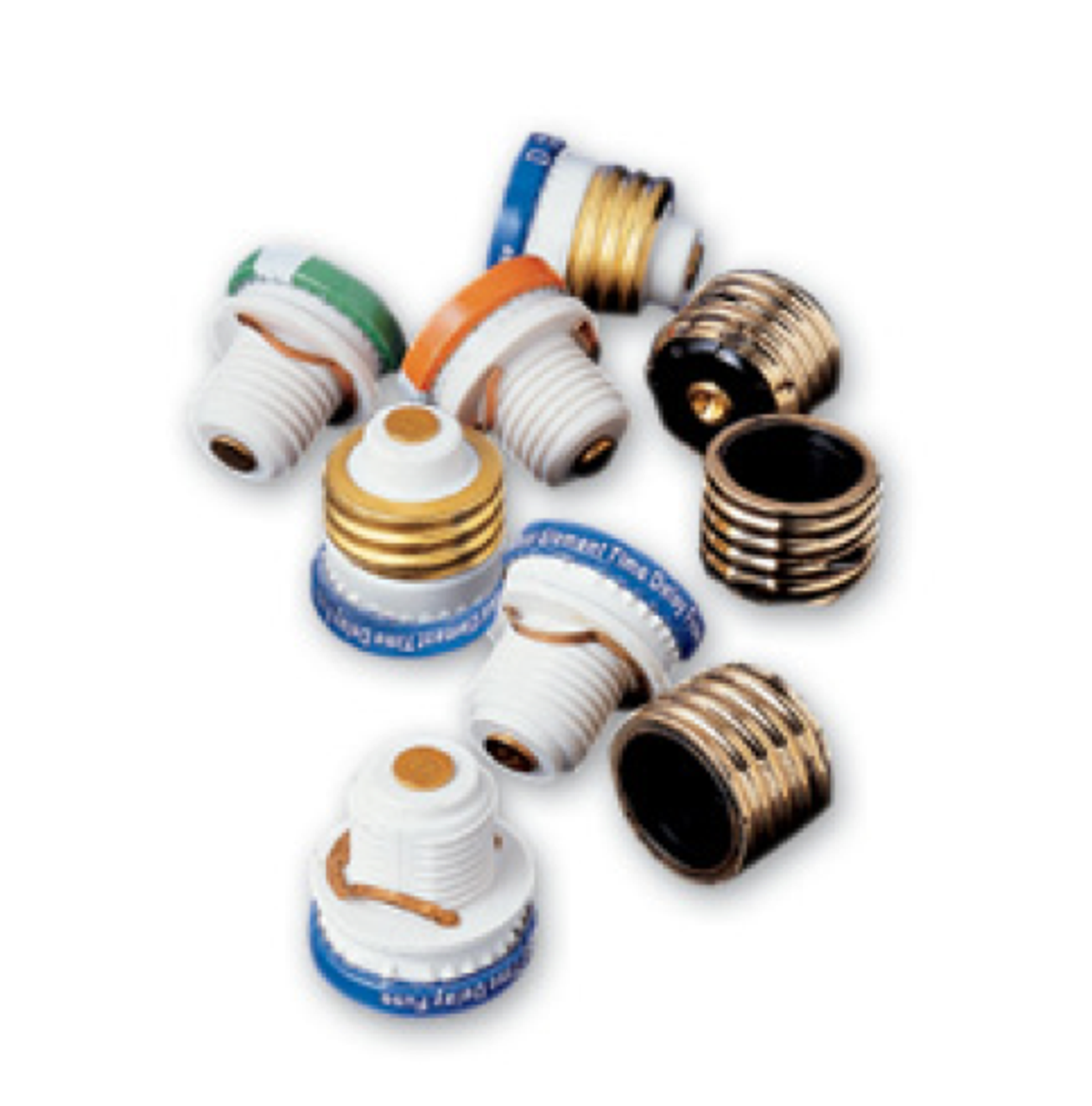

TOO, TLO, SAO, SOO & SLO SERIES PLUG FUSES 125 Vac • 4/10-30 A
Series DescriptionLittelfuse Plug fuses provide overcurrent protection to general purpose circuits and small motor loads. Edison-base Plug fuses (TOO and TLO series) feature metal threads similar to incandescent lamp bases.
Type S Plug fuses (SOO and SLO series) utilize a nonmetallic threaded base and must be used with Type S adapters (SAO series).
The National Electrical Code permits Edison base Plug fuses to be used for replacement purposes only. Type S fuses and adapters prevent shunting open fuses and over-fusing.
