Product Description
Littelfuse Industrial Business Unit SLO Series Fuse; Edison Plug; Holder Req.; 15A; 125 VAC; Medium Blow; 10kA; S Type Plug
Specialty Fuse • Mounting Type: Requires Holder • Fuse Type: Edison Plug • Current Rating (Amps): 15A • Voltage Rating - AC: 125 VAC • Response Time: Medium Blow • Applications: Electrical, Industrial • Breaking Capacity @ Rated Voltage: 10kA • Package / Case: S Type Plug
Product Information
| Manufacturer | Littelfuse Industrial Business Unit |
| Product Category | Fuse |
| Product Sub Category | Specialty Fuse |
| Series | SLO Series |
| Catalog Part Number | SLO015 |
| Ordering Part Number | 0SLO015.Z |
| Status | Obsolete |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Requires Holder |
| Fuse Type | Edison Plug |
| Current Rating (Amps) | 15A |
| Voltage Rating - AC | 125 VAC |
| Response Time | Medium Blow |
| Applications | Electrical, Industrial |
| Features | Indicating |
| Class | - |
| Approval Agency | UL |
| Breaking Capacity @ Rated Voltage | 10kA |
| Package / Case | S Type Plug |
Series Features

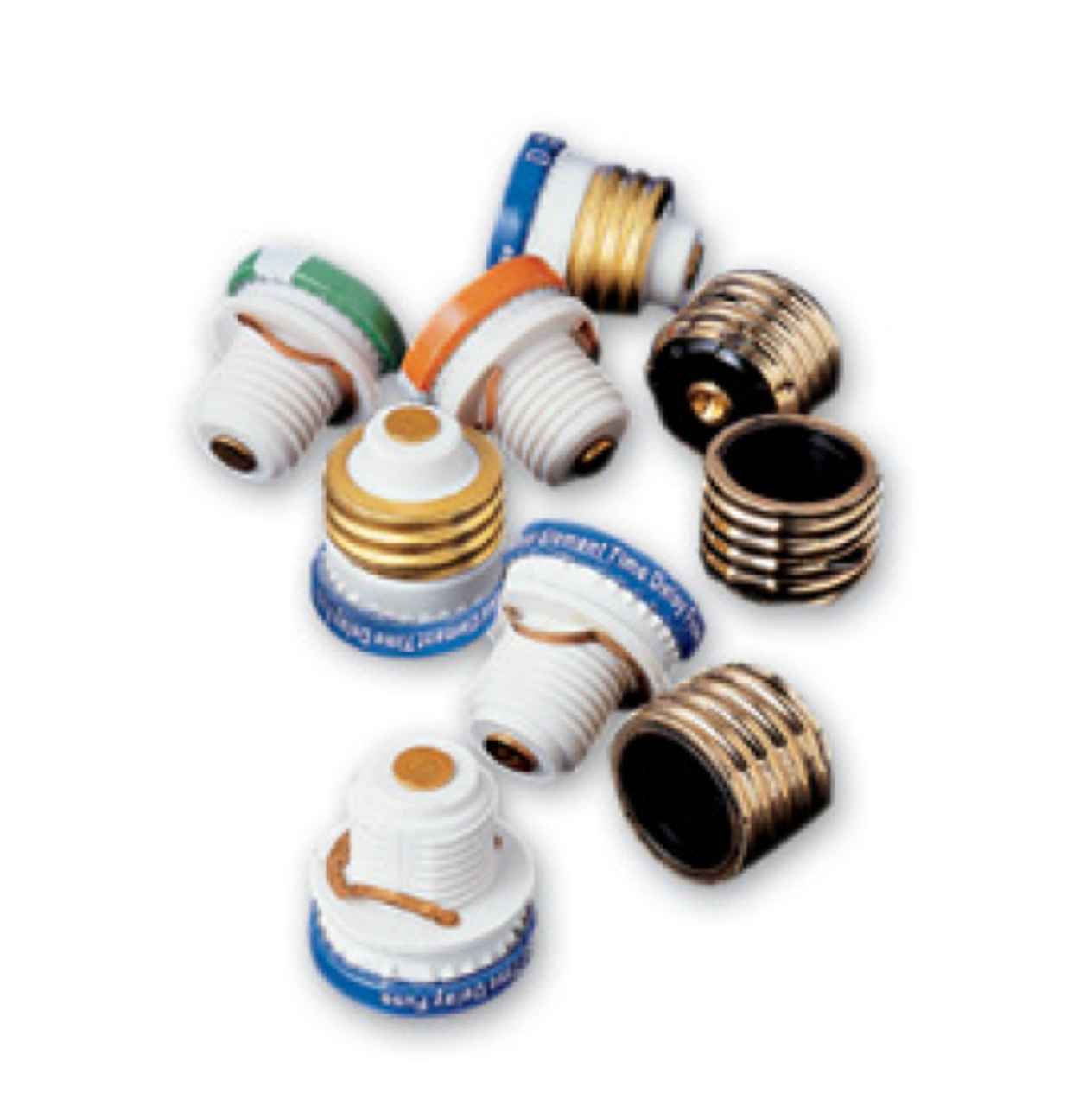

TOO, TLO, SAO, SOO & SLO SERIES PLUG FUSES 125 Vac • 4/10-30 A
Series DescriptionLittelfuse Plug fuses provide overcurrent protection to general purpose circuits and small motor loads. Edison-base Plug fuses (TOO and TLO series) feature metal threads similar to incandescent lamp bases.
Type S Plug fuses (SOO and SLO series) utilize a nonmetallic threaded base and must be used with Type S adapters (SAO series).
The National Electrical Code permits Edison base Plug fuses to be used for replacement purposes only. Type S fuses and adapters prevent shunting open fuses and over-fusing.
