Product Description

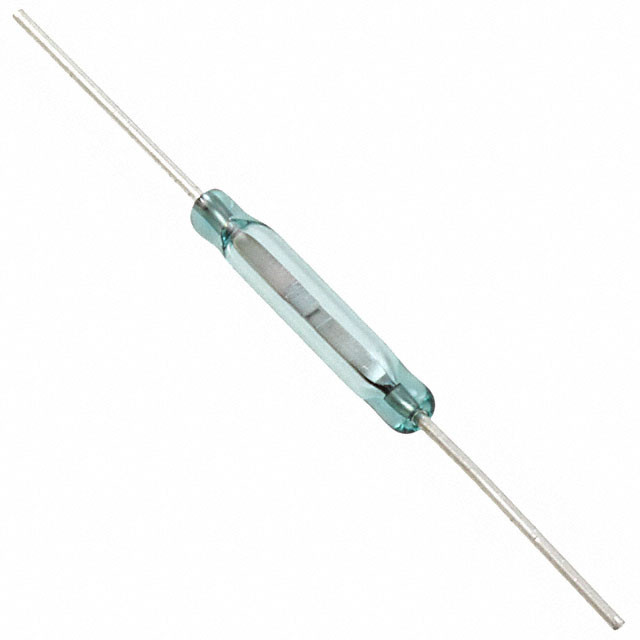

Description: Reed Switch • Type: Glass Body • Circuit: SPST-NO • Operate Range: 37~43AT • Current - Switching: 700mA (AC), 1A (DC) • Mounting Type: Through Hole • Termination Style: Axial
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Type | Glass Body |
| Circuit | SPST-NO |
| Operate Range | 37~43AT |
| Current - Switching | 700mA (AC), 1A (DC) |
| Voltage - Switching AC | 140 V |
| Voltage - Switching DC | 200 V |
| Power - Rated | 20W |
| Operate Time | 0.6 ms |
| Release Time | 0.2 ms |
| Mounting Type | Through Hole |
| Termination Style | Axial |
| Length - Overall | 1.590" (40.39mm) |
| Size - Body | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) |
| Operating Temperature | -40°C ~ 125°C |
| Capacitance | 0.4 pF |
| Current - Carry | 1A (DC) |
| Series Features |
| MLRR-4 15.2mm Sub-miniature Close Differential Reed Switch |
| Series Description: The MLRR-4 Reed Switch is a sub-miniature, normally open switch with a 15.24mm long x 2.54mm diameter (0.600 x 0.100) glass envelope, and capable of switching 200Vdc at 20W with close differential (CD) characteristics. It has high insulation resistance of 1010 ohms minimum and contact resistance less than 100 milli-ohms. It can handle lamp loads up to 2W @ 14V with no suppression circuitry. This reed switch is also available in a surface mount version, that is, MLSM-4. |
| Series Applications: Position Sensing, Security Systems, Level Sensing, Light Inductive Loads, Office Equipments, Lamp Loads up to 2W @ 14V |
|
