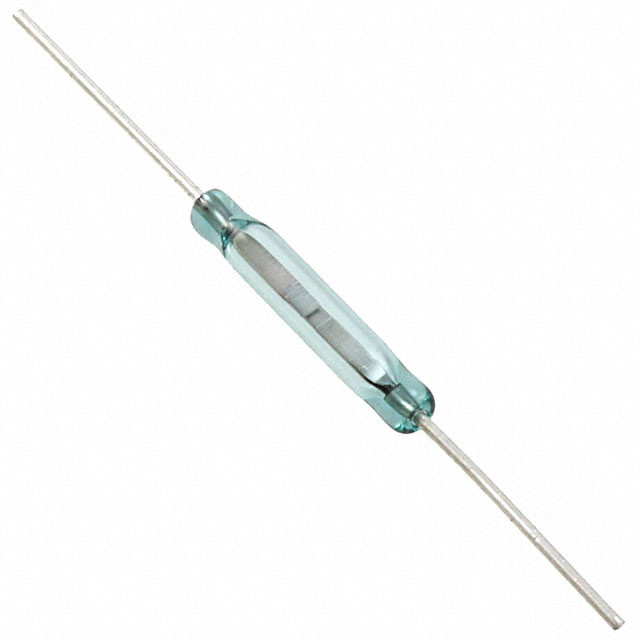

MLRR-4 15.2mm Sub-miniature Close Differential Reed Switch
Series Description:The MLRR-4 Reed Switch is a sub-miniature, normally open switch with a 15.24mm long x 2.54mm diameter (0.600” x 0.100”) glass envelope, and capable of switching 200Vdc at 20W with close differential (CD) characteristics. It has high insulation resistance of 1010 ohms minimum and contact resistance less than 100 milli-ohms. It can handle lamp loads up to 2W @ 14V with no suppression circuitry. This reed switch is also available in a surface mount version, that is, MLSM-4.
Series Applications:Position Sensing, Security Systems, Level Sensing, Light Inductive Loads, Office Equipments, Lamp Loads up to 2W @ 14V
Sub-miniature normally open switch
Capable of switching 200Vdc or 1.0A at up to 20W
Close differential AT between PI and DO value
Available sensitivity range 17-38 AT
Capable of switching small incandescent lamp loads
RoHS Compliant
