To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Littelfuse / Hamlin |
| Manufacturer Product Number | MLRR-4 12-18 |
| Description | Reed Switches; Form A (SPST-NO); 12-18 AT (special range) |
| Datasheet | Download Datasheet |

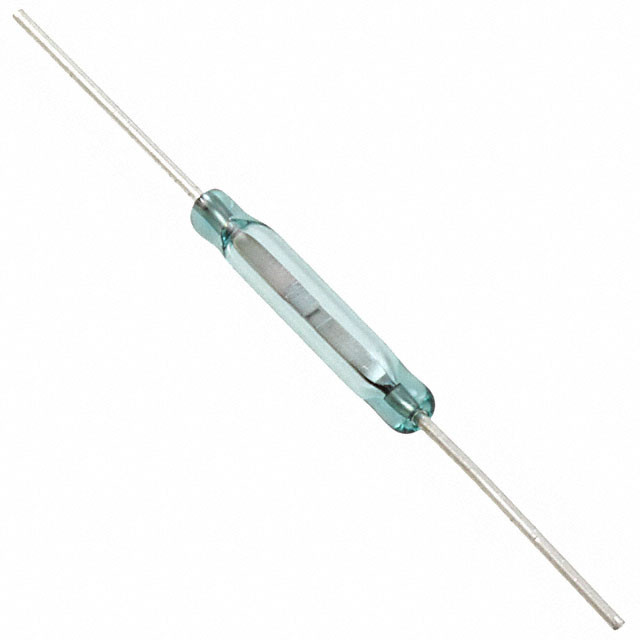

The Littelfuse MLRR-4 12-18 is a Form A (SPST-NO) reed switch with a 12-18 AT pull-in sensitivity.
This pull-in band is a special range, outside the standard bands on the series datasheet.
It switches up to 20 W max: switching voltage 200 VDC max, 140 VAC max; switching current 1.0 ADC max, 0.7 AAC max. Carry current 1.0 ADC max.
Operate time 0.6 ms max; release time 0.2 ms max.
Size: glass envelope 15.24 mm (0.600 in) max x 2.66 mm (0.105 in) max (length x diameter); 40.38 mm (1.590 in) nom overall; axial leads.
It operates from -40 to +125 °C and stores from -65 to +125 °C.
Features: Sub-miniature normally open switch; Close differential AT between PI and DO value; RoHS.
Approvals: cULus (E47258).
| Category | |
| Manufacturer | Littelfuse / Hamlin |
| Model | MLRR-4 |
