To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Littelfuse / Hamlin |
| Manufacturer Product Number | MLRR-3 22-28 |
| Description | Reed Switches; Form A (SPST-NO); 22-28 AT; 20 W max |
| Datasheet | Download Datasheet |

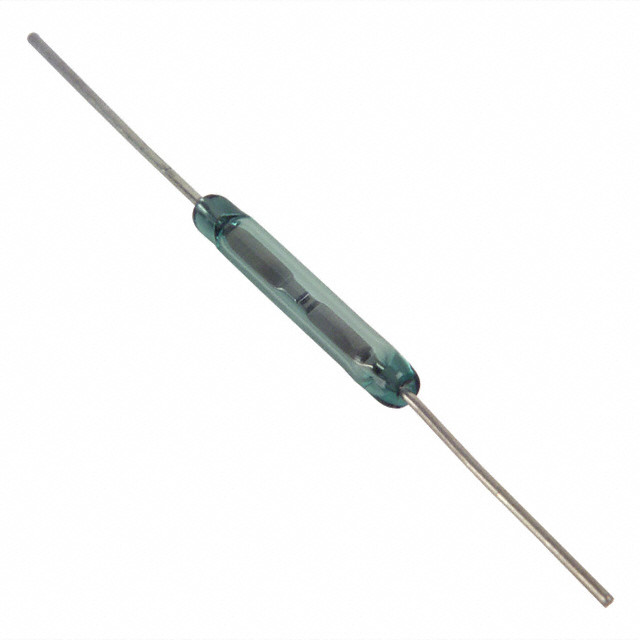

The Littelfuse MLRR-3 22-28 is a Form A (SPST-NO) reed switch with a 22-28 AT pull-in sensitivity.
It switches up to 20 W max: switching voltage 200 VDC max, 140 VAC max; switching current 1.0 ADC max, 0.7 AAC max. Carry current 1.2 ADC max.
Operate time 0.7 ms max; release time 0.2 ms max.
Size: glass envelope 15.24 mm (0.600 in) max x 2.66 mm (0.105 in) max (length x diameter); 56.64 mm (2.230 in) nom overall; axial leads.
It operates from -40 to +125 °C and stores from -65 to +125 °C.
Features: Miniature normally open switch; Close differential AT between PI and DO value; Maximum switched current of 1.0 A; RoHS.
Approvals: cULus (E47258).
| Category | |
| Manufacturer | Littelfuse / Hamlin |
| Model | MLRR-3 |
| Contact Form | Form A (SPST-NO) |
| Pull-In Range | 22-28 AT |
| Switching Power | 20 W max |
| Switching Voltage | 200 VDC max; 140 VAC max |
| Switching Current | 1.0 ADC max; 0.7 AAC max |
| Carry Current | 1.2 ADC max |
| Operate Time | 0.7 ms max |
| Release Time | 0.2 ms max |
| Glass Length | 15.24 mm (0.600 in) max |
| Glass Diameter | 2.66 mm (0.105 in) max |
| Overall Length | 56.64 mm (2.230 in) nom |
| Termination | Axial leads |
| Operating Temperature | -40 to +125 °C (-65 to +125 °C) |
| Approvals | cULus (E47258) |
| Features | Miniature normally open switch; Close differential AT between PI and DO value; Maximum switched current of 1.0Amps; RoHS |
