Product Description

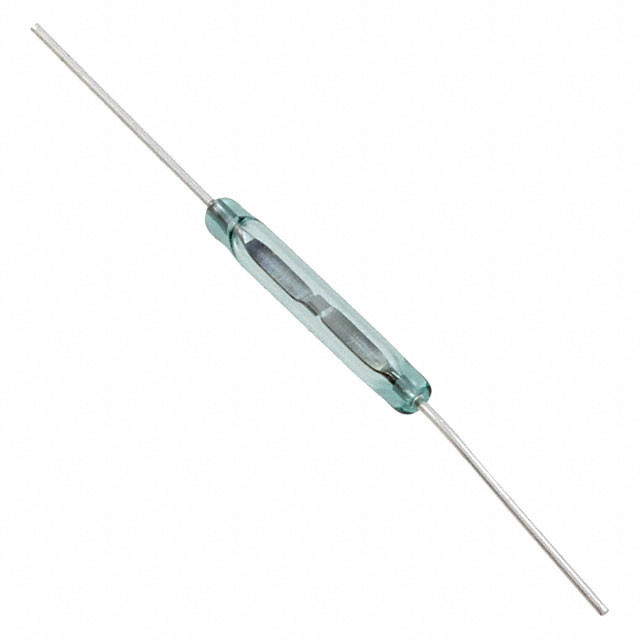

Description: Reed Switch • Type: Glass Body Reed • Circuit: SPST-NO • Operate Range: 12~38AT • Current - Switching: 500mA (DC) • Mounting Type: Through Hole • Termination Style: Axial
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Type | Glass Body Reed |
| Circuit | SPST-NO |
| Operate Range | 12~38AT |
| Current - Switching | 500mA (DC) |
| Voltage - Switching AC | - |
| Voltage - Switching DC | 200 V |
| Power - Rated | 10W |
| Operate Time | 0.6 ms |
| Release Time | 0.2 ms |
| Mounting Type | Through Hole |
| Termination Style | Axial |
| Length - Overall | 1.590" (40.39mm) |
| Size - Body | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) |
| Operating Temperature | -40°C ~ 125°C |
| Capacitance | 0.2 pF |
| Current - Carry | 1.2A (DC) |
