Product Description

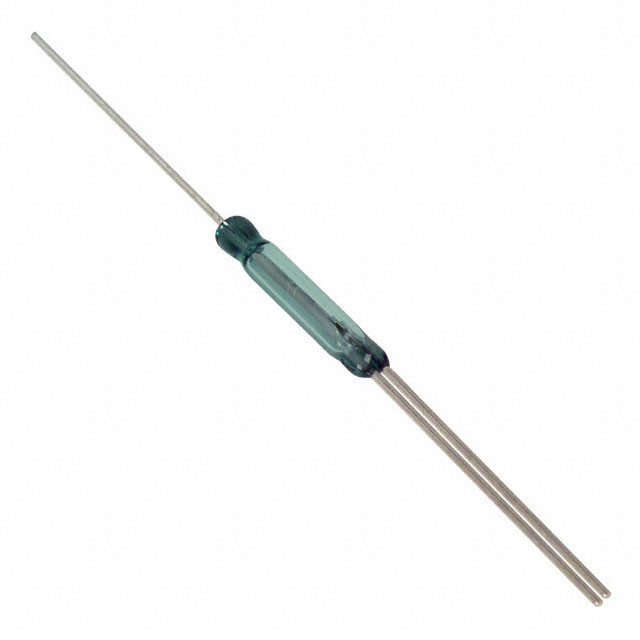

Description: Reed Switch • Type: Glass Body • Circuit: SPDT • Operate Range: 25~30AT • Current - Switching: 180mA (AC), 250mA (DC) • Mounting Type: Through Hole • Termination Style: Axial
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Type | Glass Body |
| Circuit | SPDT |
| Operate Range | 25~30AT |
| Current - Switching | 180mA (AC), 250mA (DC) |
| Voltage - Switching AC | 120 V |
| Voltage - Switching DC | 175 V |
| Power - Rated | 5W |
| Operate Time | 0.7 ms |
| Release Time | 1 ms |
| Mounting Type | Through Hole |
| Termination Style | Axial |
| Length - Overall | 2.066" (52.48mm) |
| Size - Body | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) |
| Operating Temperature | -40°C ~ 125°C |
| Capacitance | 1 pF |
| Current - Carry | 1.5A (DC) |
| Series Features |
| MDRR-DT 14.7mm Miniature Changeover Reed Switch |
| Series Description: The MDRR-DT Reed Switch is a miniature changeover switch with a 14.73mm long x 2.54mm diameter (0.580 x 0.100) glass envelope, capable of switching 175Vdc at 5W. It has insulation resistance of 109 ohms minimum, and contact resistance less than 100 milli-ohms. The MDRR-DT is available in surface mount version, that is, MDSM-DT. |
| Series Applications: Position Sensing, Reed Relays, Industrial Controls, Office Equipments, Home Appliances, Security |
|
