To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | LITTELFUSE |
| Manufacturer Product Number | LS5129-3 |
| Description | Power Distribution Block; 620A; 600 V |
| Datasheet | Download Datasheet |

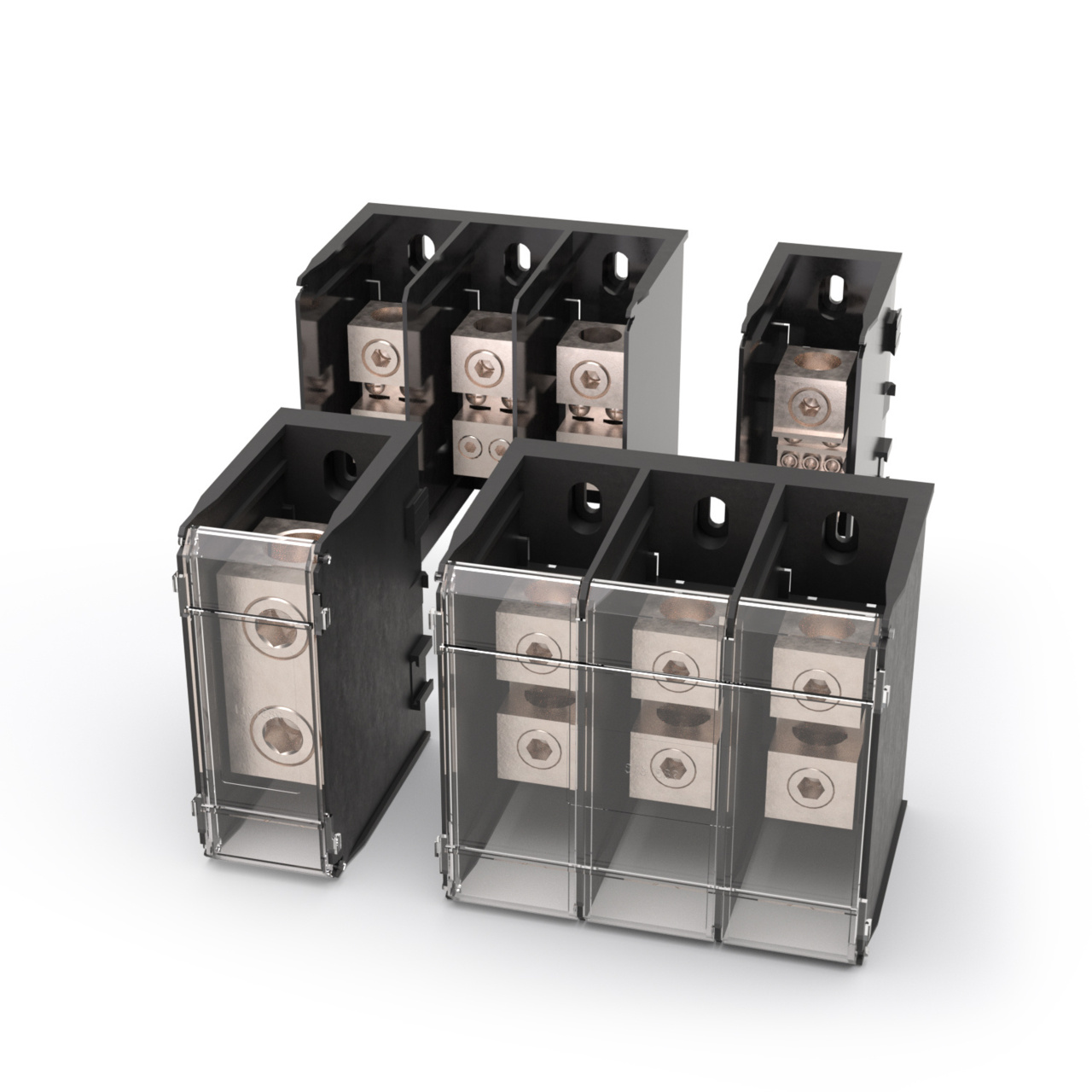

The Littelfuse LS5129-3 is a 620 A, 3-pole power distribution block for 600 V, with 2 inputs and 2 outputs per pole.
Input side: 350 kcmil-4 AWG (5/16 in hex lug, 275 in-lb). Output side: 350 kcmil-4 AWG (5/16 in hex lug, 275 in-lb).
It can split one feed into several outputs, split across several poles, or group several inputs into one output, on tin-plated aluminum box lugs.
It is moulded to UL94 V-0.
| Category | |
| Manufacturer | LITTELFUSE |
| Model | LS5129 |
