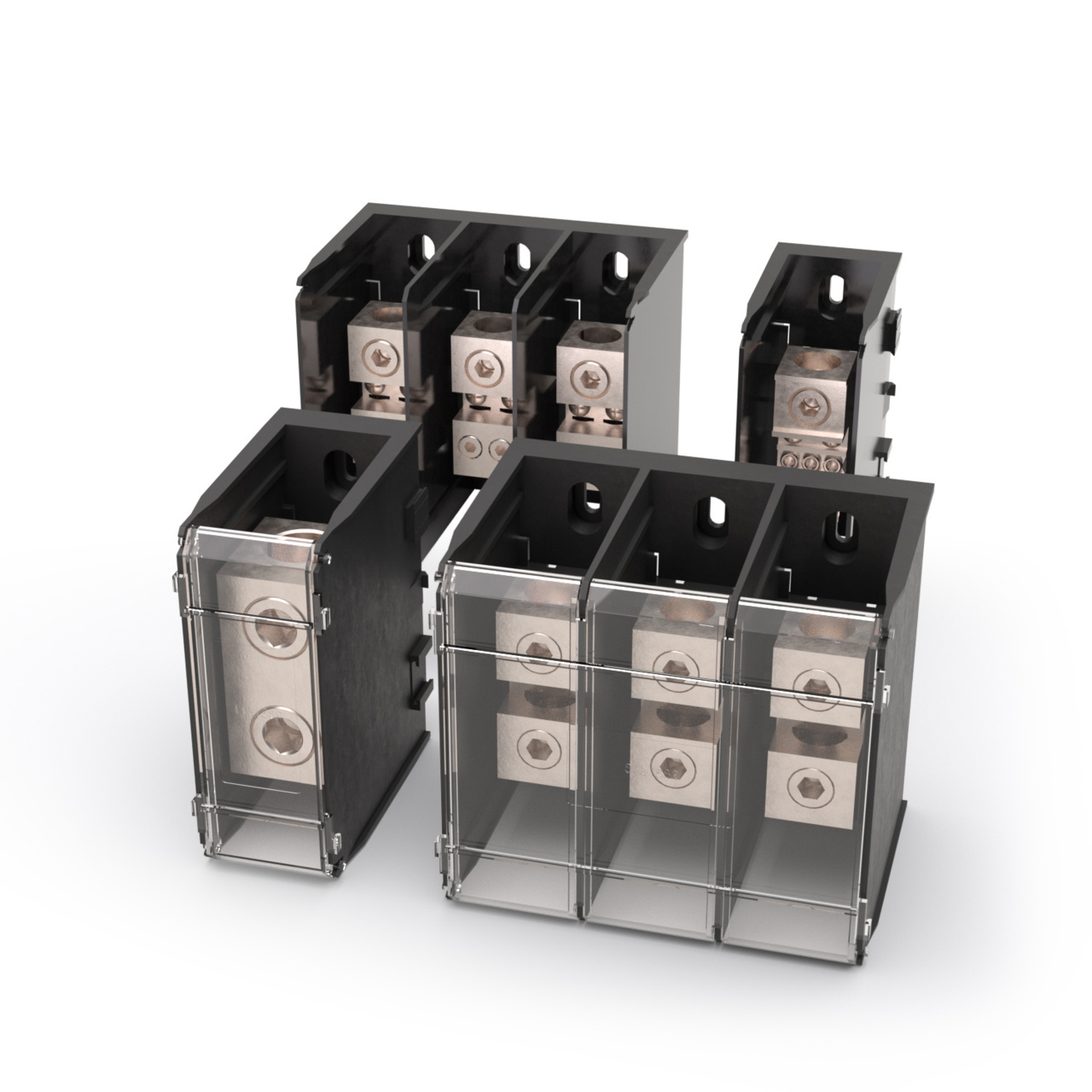

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | LITTELFUSE |
| Manufacturer Product Number | LD5705-3 |
| Description | Power Distribution Block; 950A; 600 V |
| Datasheet | Download Datasheet |
The Littelfuse LD5705-3 is a 950 A, 3-pole power distribution block for 600 V, with 2 inputs and 15 outputs per pole.
Input side: 750 kcmil-1/0 AWG (9/16 in hex lug, 600 in-lb). Output side: 3 x 250 kcmil-6 AWG (5/16 in hex lug, 275 in-lb) + 12 x 2-14 AWG (5/32 in hex lug, 40-50 in-lb).
It can split one feed into several outputs, split across several poles, or group several inputs into one output, on tin-plated aluminum box lugs.
It is moulded to UL94 V-0.
| Category | |
| Manufacturer | LITTELFUSE |
| Model | LD5705 |
