| Manufacturer | LITTELFUSE |
| Manufacturer Product Number | LD4554-3 |
| Description | Power Distribution Block; 310A; 600 V |
| Datasheet | Download Datasheet |

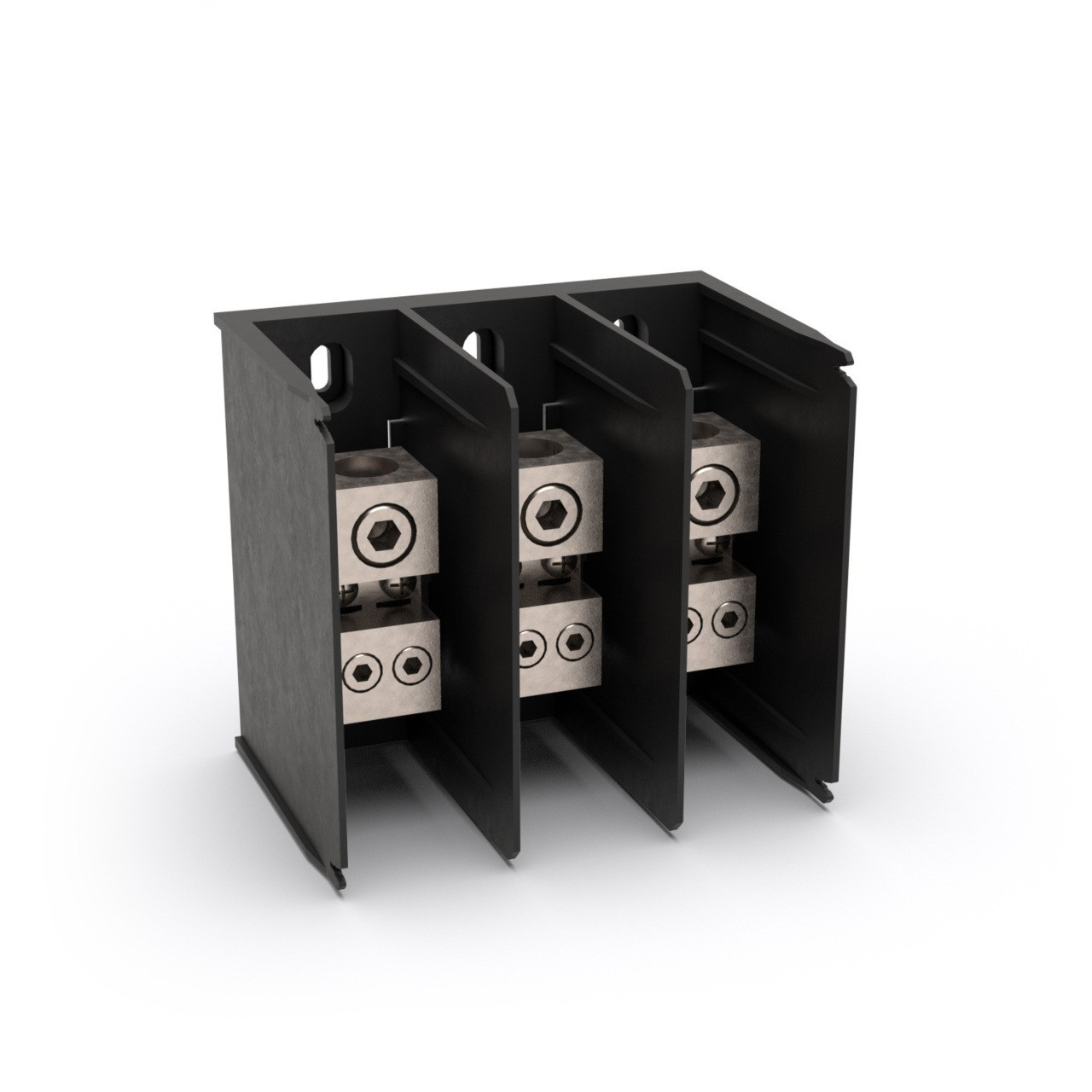

The Littelfuse LD4554-3 is a 310 A, 3-pole power distribution block for 600 V, with 1 input and 2 outputs per pole.
Input side: 350 kcmil-6 AWG (5/16 in hex lug, 275 in-lb). Output side: 2/0-14 AWG (3/16 in hex lug, 35-120 in-lb).
It can split one feed into several outputs, split across several poles, or group several inputs into one output, on tin-plated aluminum box lugs.
It is moulded to UL94 V-0.
| Category | |
| Manufacturer | LITTELFUSE |
| Model | LD4554 |
| Current Rating (A) | 310 |
| Number of Inputs | 1 |
| Number of Outputs | 2 |
| Rated Voltage | 600 V |
| Number of Poles | 3 |
| Input Wiring | 350 kcmil-6 AWG (5/16 in hex lug, 275 in-lb) |
| Output Wiring | 2/0-14 AWG (3/16 in hex lug, 35-120 in-lb) |
| Flammability Rating | UL94 V-0 |
| Termination Style | Tin-plated aluminum box lugs |
| Approvals | UL Listed |
