To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | LITTELFUSE |
| Manufacturer Product Number | LFR60060-2CID |
| Description | Fuse Block; Class R; 2-Pos; Indicating; 60 A; 600 V; FLSR |
| Datasheet | Download Datasheet |

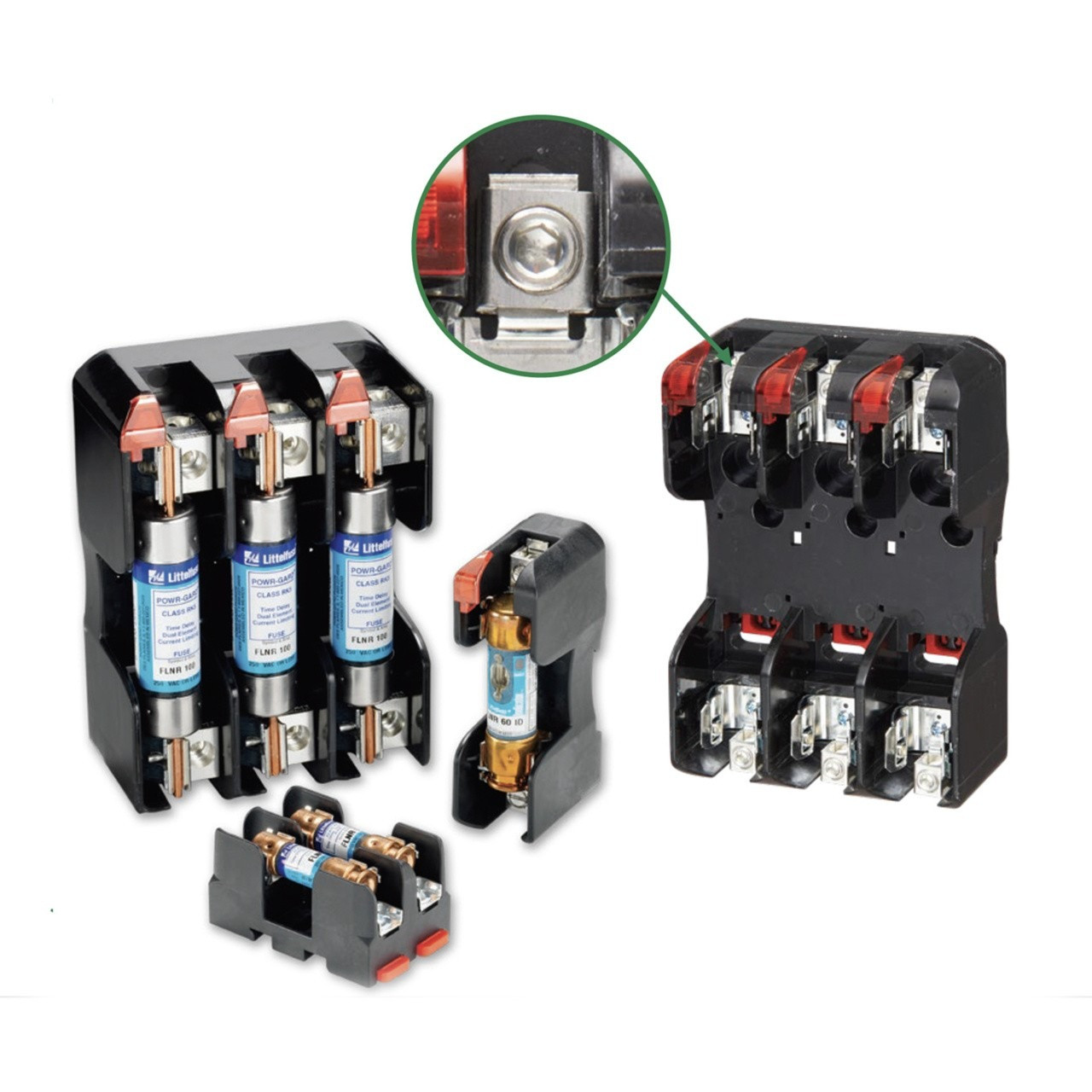

The Littelfuse LFR60060-2CID is a 2-position Class R fuse block, rated 60 A, 600 V.
Interrupting rating 200 kA SCCR. Terminals: box lug, slot screw. Mounting: DIN rail. It indicates which position's fuse has blown. Wire: 2-4 AWG (50 in-lb), 6-14 AWG (25 in-lb) Cu/Al, solid or stranded. Cover: LFH60060FBC cover, one per pole, sold separately. Fits FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID, IDSR fuses.
Construction: thermoplastic, UL94 V-0; tin-plated copper alloy fuse clips, aluminum box lug contacts.
Approvals: UL Listed, CSA, UL file E14721.
| Category | |
| Manufacturer | LITTELFUSE |
| Model | LFR60 |
| Fuse Type | Class R |
| Holder Type | Class R fuse block |
| Positions | 2 |
| Max Current (A) | 60 |
| Voltage Rating | 600 V |
| Interrupting Rating | 200 kA SCCR |
| Wire Gauge | 2-4 AWG (50 in-lb), 6-14 AWG (25 in-lb) Cu/Al, solid or stranded |
| Terminal Type | Box lug, slot screw |
| Mounting | DIN rail |
| Blown Fuse Indicator | Indicating |
| Cover | LFH60060FBC cover, one per pole, sold separately |
| Housing Material | Thermoplastic, UL94 V-0 |
| Contact Material | Tin-plated copper alloy fuse clips, aluminum box lug |
| Fits | FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID, IDSR fuses |
| Approvals | UL Listed, CSA |
| UL File Number | E14721 |
