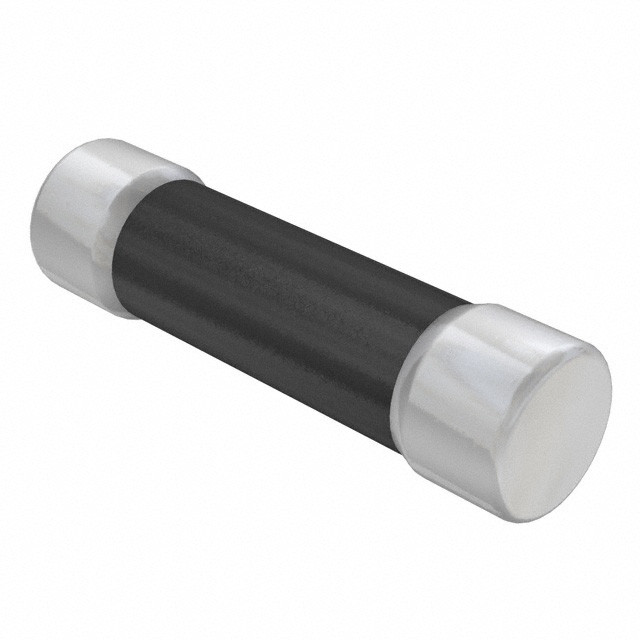

Littelfuse Industrial Business Unit SPF Series Solar Fuse; Through Hole; 30A; 1 kVDC; Fast Blow; 5AG, 10mm x 38mm (Midget)
Cylindrical Fuse • Mounting Type: Through Hole • Fuse Type: Cartridge • Current Rating (Amps): 30A • Voltage Rating - DC: 1 kVDC • Response Time: Fast Blow • Package / Case: 5AG, 10mm x 38mm (Midget) • Size / Dimension: 0.406" Dia x 1.500" L (10.31mm x 38.10mm)
Product Information
| Manufacturer | Littelfuse Industrial Business Unit |
| Product Category | Fuses |
| Product Sub Category | Cylindrical Fuse |
| Series | SPF Series |
| Catalog Part Number | SPF025 |
| Ordering Part Number | 0SPF025.T |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 25A |
| Voltage Rating - DC | 1 kVDC |
| Response Time | Fast Blow |
| Applications | Solar (Photovoltaic) |
| Approval Agency | CE, CSA, UL, VDE |
| Breaking Capacity @ Rated Voltage | 20kA |
| Package / Case | 5AG, 10mm x 38mm (Midget) |
| Size / Dimension | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) |
Series Features
POWR-GARD® Fuse SPF Series 1000 V dc • 1–30 A
Series DescriptionThe SPF Solar Protection Fuse series has been specifically designed for the protection of photovoltaic (PV) systems. This family of midget-style fuses (10 x 38 mm) can safely protect PV modules and conductors from reverse-overcurrent conditions.
As PV systems have grown in size, so have the corresponding voltage requirements. This increase in system voltage has typically been intended to minimize power loss associated with long conductor runs. Standard circuit protection devices are not designed to completely protect photovoltaic panels. However, the SPF series is UL Listed to safely interrupt faulted circuits up to this demanding voltage level.
Littelfuse offers multiple ampere ratings to match specific requirements in a variety of applications.
- Full range, fast-acting fuse helps eliminate common low-overload faults
- Prevents power generation losses due to nuisance tripping from changes in temperature
- Both PCB mount and dead-front holder options available
Inverters, Combiner boxes, Battery charge controllers
