To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | LITTELFUSE |
| Manufacturer Product Number | SPF020R |
| Description | Micro Fuse; 20 A; Solar gPV; Fast-Acting; PCB Mount (1-tab); 1000 VDC; UL/CSA/TUV |
| Datasheet | Download Datasheet |

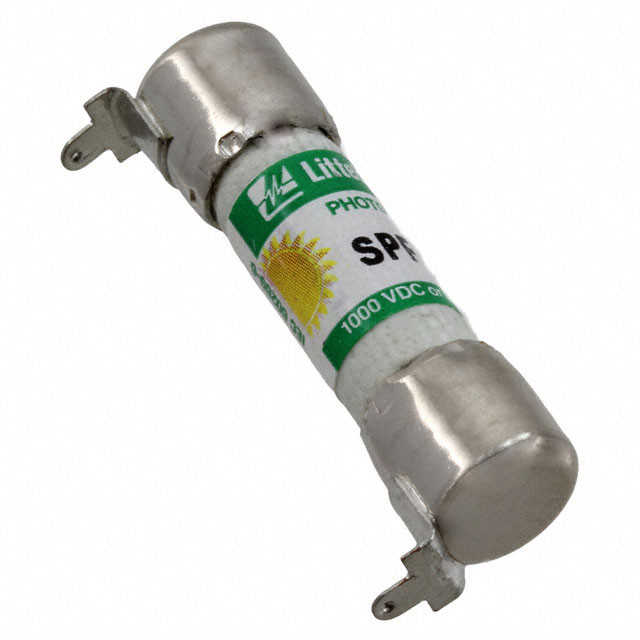

The Littelfuse SPF020R is a 20 A fast-acting photovoltaic (gPV) fuse, rated 1000 VDC.
A gPV fuse is rated for photovoltaic strings: DC voltage up to the array's open-circuit level and the low fault currents of solar panels. A fast-acting fuse opens quickly on an overload, for resistive and lightly loaded circuits with little switch-on surge.
Interrupting rating: 20 kA.
Construction: PCB tabs.
It is UL Listed, CSA certified and TÜV certified.
| Category | |
| Manufacturer | LITTELFUSE |
| Model | SPF |
| Current Rating (A) | 20 |
| Speed | Fast-Acting |
| UL Class | Photovoltaic (gPV) |
| Voltage Rating | 1000 VDC |
| Breaking Capacity | 20 kA |
| Mounting Style | PCB Mount (1-tab) |
| Terminal Type | PCB tabs |
| Approvals | UL Listed, CSA, TUV |
| Cold Resistance (Ω) | 0.005 |
