Product Description

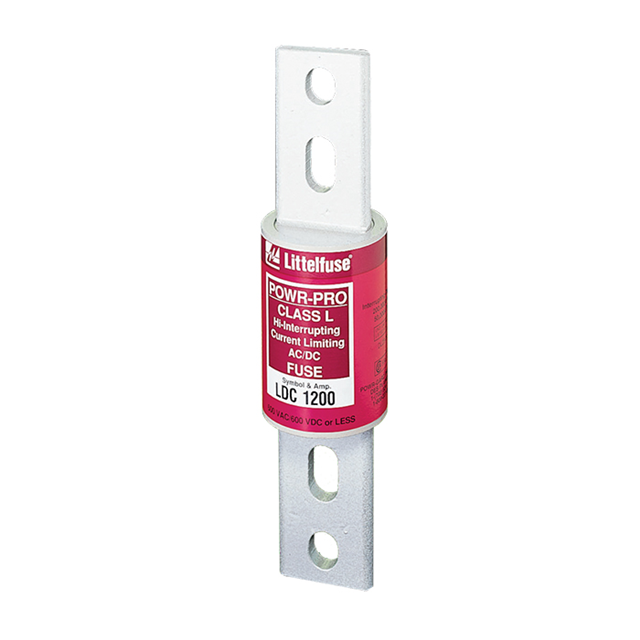

Littelfuse Industrial Business Unit LDC Series Cylindrical Fuse; Bolt Mount; 2kA; 600 VAC; 600 VDC; Fast Blow; Cylind, Blade Term
Fuse • Mounting Type: Bolt Mount • Fuse Type: Cartridge • Current Rating (Amps): 2kA • Voltage Rating - AC: 600 VAC • Voltage Rating - DC: 600 VDC • Response Time: Fast Blow • Breaking Capacity @ Rated Voltage: 200kA AC, 50kA DC • Package / Case: Cylindrical, Blade Terminal (Bolt)
Product Information
| Manufacturer | Littelfuse Industrial Business Unit |
| Product Category | Fuse |
| Product Sub Category | Cylindrical Fuse |
| Series | LDC Series |
| Catalog Part Number | LDC2000 |
| Ordering Part Number | 0LDC2000X |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 2kA |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 600 VDC |
| Response Time | Fast Blow |
| Applications | Solar (Photovoltaic) |
| Class | L |
| Approval Agency | CE, CSA, UL |
| Breaking Capacity @ Rated Voltage | 200kA AC, 50kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 3.500" Dia x 3.752" L (88.90mm x 95.30mm) |
Series Features
POWR-GARD® Fuse CLASS L – LDC SERIES FUSES 600 V ac/dc • Fast Acting • 150–2000 A
Series DescriptionHigh dc voltage and interrupting ratings make the POWR-PRO® LDC ideal for dc applications. The dc interrupting performance exceeds UL listing requirements.
- POWR-PRO performance
- Extremely current-limiting
- 600 V ac/dc rated
- 200 kA ac interrupting rating
- 50 kA dc interrupting rating
Solar inverter and array protection, UPS protection especially for large battery circuits, Dc distribution and variable speed drives, Mass transit systems
