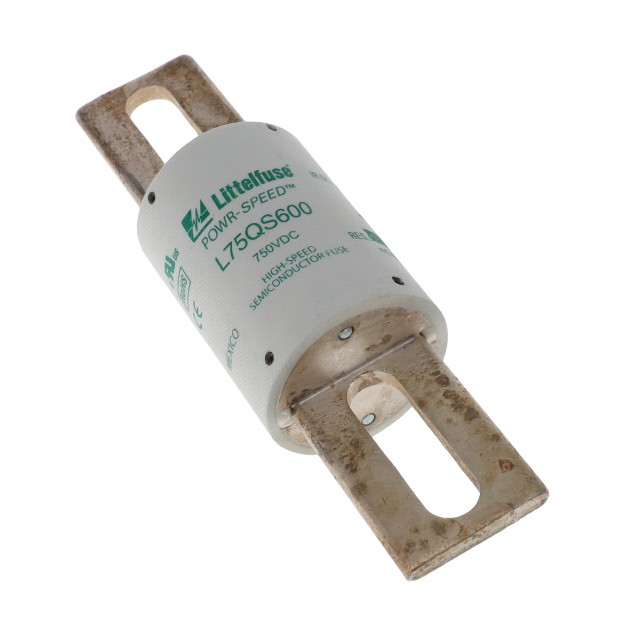

Littelfuse Industrial Business Unit L75QS Series Fuse; Bolt Mount; 600A; 750 VDC;Fast Blow; 50kA; Cylindrical, Blade Terminal (Bolt)

Cylindrical Fuse • Mounting Type: Bolt Mount • Fuse Type: Cartridge • Current Rating (Amps): 600A • Voltage Rating - DC: 750 VDC • Response Time: Fast Blow • Class: - • Breaking Capacity @ Rated Voltage: 50kA • Package / Case: Cylindrical, Blade Terminal (Bolt)

Specifications

Series Features

L75QS SERIES HIGH-SPEED ROUND BODY 750 V dc • Very Fast Acting • 35–800 A

The L75QS series is a next generation high-speed fuse for the protection of power semiconductor devices and is designed in the traditional round body bolted style package.

L75QS series high-speed fuses rated at 750 V dc are extremely current limiting and are used to protect power converters, drives and control circuit applications. Designed with lower I2t performance characteristics, these fuses provide balanced performance to extend longevity while lowering potentially damaging heat energy to the devices being protected.

In addition L75QS series fuses have been designed with a universal mounting option to meet customer requirements for installation into a variety of application configurations.

Littelfuse POWR-SPEED products offer optimized circuit protection at the extremely fast speed required to protect modern day, sensitive, high-power semiconductor devices.

• Compliance with US and Canadian requirements
• Traditional North American bolted style dimensions
• 750 V dc performance
• Direct bus-bar mount or stud mount design
• Halogen free, RoHS and REACH compliant

Power converters (inverters, rectifiers), Power supplies, UPS, EV charging stations, Variable speed drives, Dc common bus
