| Manufacturer | LITTELFUSE |
| Manufacturer Product Number | L70S350 |
| Description | Industrial Fuse; 350A; Semicon; Very Fast-Acting; Bolt-in; 700 VAC / 650 VDC; UR/CSA |
| Datasheet | Download Datasheet |

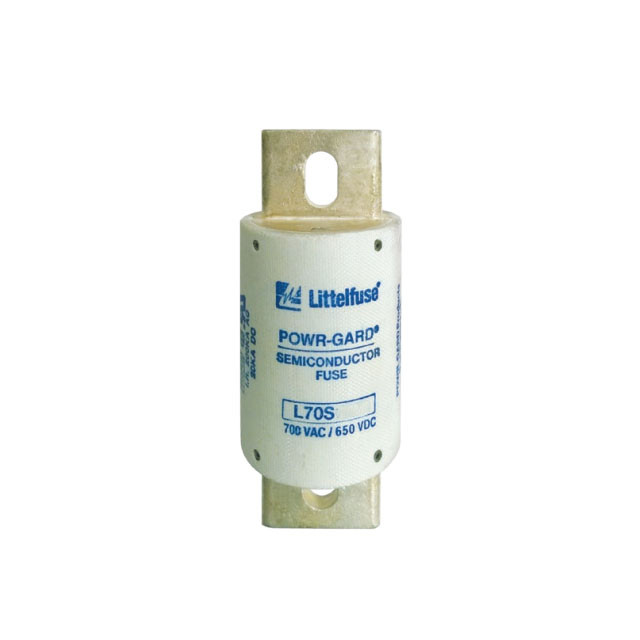

The Littelfuse L70S350 is a 350 A high-speed semiconductor fuse, rated 700 VAC / 650 VDC.
A high-speed (semiconductor) fuse clears a fault fast enough to protect power semiconductors -- diodes, thyristors, IGBTs -- in drives, rectifiers and UPS systems.
Interrupting rating: 200 kA AC; 20 kA DC. Pre-arcing I²t 19000 A²s.
Construction: bolted tags; figure 2.
It is UL Recognized and CSA certified.
| Category | |
| Manufacturer | LITTELFUSE |
| Model | L70S |
| Current Rating (A) | 350 |
| Speed | Very Fast-Acting |
| UL Class | High-Speed Semiconductor |
| Voltage Rating | 700 VAC / 650 VDC |
| Breaking Capacity | 200 kA AC; 20 kA DC |
| Mounting Style | Bolt-in |
| Terminal Type | Bolted tags; Figure 2 |
| Approvals | UL Recognized, CSA |
| Melting I²t (A²s) | 19000 |
