Product Description
Littelfuse Industrial Business Unit LF Series Fuse Holder; 30 A;1 Circuit(s); DIN Rail; 600V; Screw Terminal, Quick Connect; 5AG, 13/32" x 1-1/2" (Midget)
Fuse Holder • Mounting Type: DIN Rail • Fuse Size: 0.394" Dia x 1.496" L (10mm x 38mm) • Current Rating (Amps): 30 A • For Use With/Related Products: 5AG, 13/32" x 1-1/2" (Midget) • Fuse Type: Cartridge • Number of Circuits: 1 • Voltage: 600V • Termination Style: Screw Terminal, Quick Connect
Product Information
| Manufacturer | Littelfuse Industrial Business Unit |
| Product Category | Fuses |
| Product Sub Category | Cylindrical Fuse |
| Series | L50S Series |

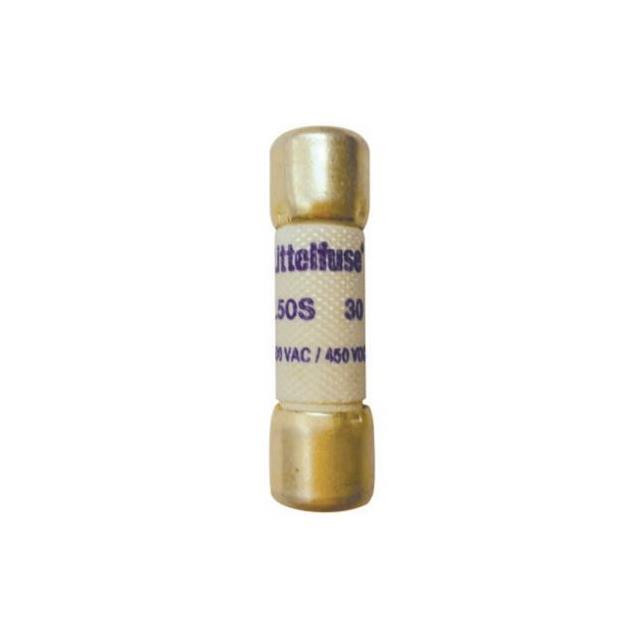

| Catalog Part Number | L50S012 |
| Ordering Part Number | L50S012.T |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 12A |
| Voltage Rating - AC | 500 VAC |
| Voltage Rating - DC | 450 VDC |
| Response Time | Fast Blow |
| Applications | Semiconductors |
| Class | - |
| Approval Agency | CE, CSA, UR |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) |
Series Features
POWR-GARD® Fuse L50S SERIES HIGH-SPEED ROUND BODY 500 V ac • 450 V dc • Very Fast Acting • 10–800 A
Series DescriptionLittelfuse L50S series high-speed fuses are designed to protect today’s equipment and systems, and are manufactured with Littelfuse-developed technology that sets tomorrow’s standards for accuracy, consistent quality, reliability, and predictable performance.
Littelfuse engineers have redefined high-speed fuse technology by using advanced metallurgical, polymer, and materials research, mathematical modeling, and computerized statistical analysis.
- Extremely current limiting
- Low watt losses
- Controlled transient over-voltages
- UL Recognized
Ac and dc drives, Dc common bus protection, Power converters, UPS, Spft-Starters
