To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | LITTELFUSE |
| Manufacturer Product Number | KLKR.125 |
| Description | Industrial Fuse; 0.125 A; Class CC; Fast-Acting; 10x38mm; Pack of 10; 600 VAC / 300 VDC |
| Datasheet | Download Datasheet |

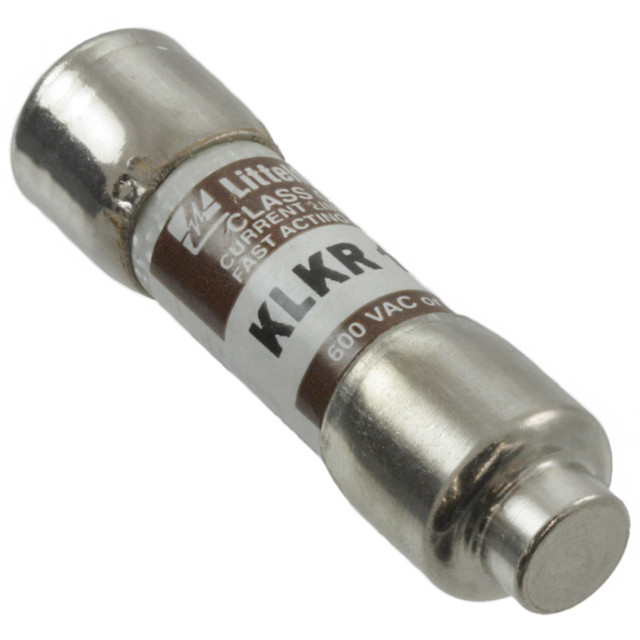

The Littelfuse KLKR.125 is a 125 mA fast-acting UL Class CC fuse, rated 600 VAC / 300 VDC.
Class CC is the 600 V, 200 kA branch-circuit fuse in the 13/32 x 1-1/2 in size; its rejection tip keeps it out of holders meant for midget fuses. A fast-acting fuse opens quickly on an overload, for resistive and lightly loaded circuits with little switch-on surge.
Interrupting rating: 200 kA @ 600 VAC; 20 kA @ 300 VDC (Littelfuse self-certified).
Construction: 13/32 x 1-1/2 in (10.3 x 38.1 mm); ferrule with rejection tip.
It is UL Listed, CSA certified and CE marked (UL file E81895). Standards: UL 248-4.
| Category | |
| Manufacturer | LITTELFUSE |
| Model | KLKR |
| Current Rating (A) | 0.125 |
| Size | 13/32 x 1-1/2 in (10.3 x 38.1 mm) |
| Speed | Fast-Acting |
| UL Class | Class CC |
| Voltage Rating | 600 VAC / 300 VDC |
| Breaking Capacity | 200 kA @ 600 VAC; 20 kA @ 300 VDC (Littelfuse self-certified) |
| Body Material | Melamine |
| Mounting Style | Cartridge |
| Terminal Type | Ferrule with rejection tip |
| Packaging | Pack of 10 |
| Approvals | UL Listed, CSA, CE |
| UL File Number | E81895 |
| Standards | UL 248-4 |
| End Cap Material | Nickel-plated bronze |
