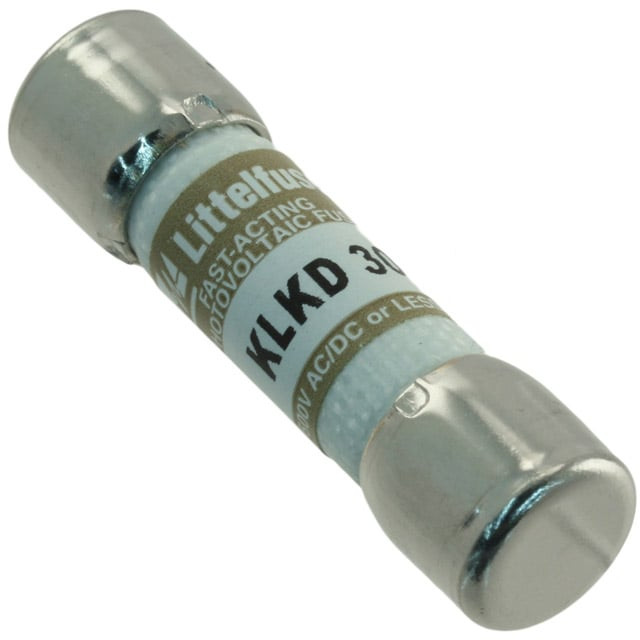

Littelfuse Industrial Business Unit KLKD Series Fuse; Requires Holder; 100kA AC, 50kA DC; 125mA;600 VAC;600 VDC; Fast Blow; Cartridge, Non-Standard

Cylindrical Fuse • Mounting Type: Requires Holder • Fuse Type: Cartridge • Current Rating (Amps): 125mA • Voltage Rating - AC: 600 VAC • Voltage Rating - DC: 600 VDC • Response Time: Fast Blow • Breaking Capacity @ Rated Voltage: 100kA AC, 50kA DC • Package / Case: Cartridge, Non-Standard

Specifications

Series Features

Midget 10x38mm Fuses KLKD Series 600 V ac/dc • Fast Acting • 1⁄10 – 30 A

The KLKD series fast-acting 600 V ac/dc fuses are used in solar combiner boxes and in circuits with dc fault currents up to 50,000 A. These fuses are designed to meet both the UL and IEC photovoltaic fuse specifications and are available in standard and board-mount configurations. The KLKD midget fuses also have high-interrupting and current-limiting capability. They are intended to supplement the primary branch-circuit fuse or breaker to provide backup overcurrent protection. The KLKD fuses are non-indicating and may be used with an indicating fuse block or cover. These fuses are offered in a wide range of ampere ratings to match specific requirements in a variety of applications. Note that 1–5 A meets UL 1741 GFDI requirements.

• 10x38 mm size: Common dimensions used in a variety of applications
• Fast-acting: Provides fast, reliable short-circuit response within the interrupting rating
• Mounting options: Available in ferrule or PCB mount
• POWR-GARD® technology :Ensures quality backup overcurrent protection
• UL & IEC certifications: Certifications to serve the global market

Solar combiner boxes, Inverters, Power supplies, Desktop meters
