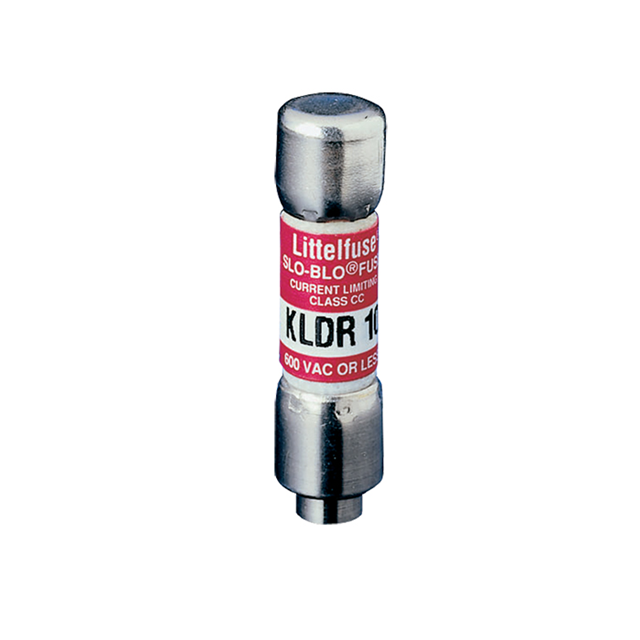

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | LITTELFUSE |
| Manufacturer Product Number | KLDR.800HXP |
| Description | Industrial Fuse; 0.8 A; Class CC; Time-Delay; 10x38mm; 600 VAC / 300 VDC; Rej |
| Datasheet | Download Datasheet |
The Littelfuse KLDR.800HXP is an 800 mA time-delay (slow-blow) UL Class CC fuse, rated 600 VAC / 300 VDC.
Class CC is the 600 V, 200 kA branch-circuit fuse in the 13/32 x 1-1/2 in size; its rejection tip keeps it out of holders meant for midget fuses. A time-delay element rides through the brief inrush of motors, transformers and capacitive power supplies, yet still opens on a sustained overload.
Interrupting rating: 200 kA @ 600 VAC; 20 kA @ 300 VDC (Littelfuse self-certified). Opening times, as a percentage of the rated current: 135%: max. 60 min; 200%: min. 12 s. Pre-arcing I²t 0.2416 A²s.
Construction: 13/32 x 1-1/2 in (10.3 x 38.1 mm); ferrule with rejection tip.
It is UL Listed, CSA certified and CE marked.
| Category | |
| Manufacturer | LITTELFUSE |
| Model | KLDR |
| Current Rating (A) | 0.8 |
| Size | 13/32 x 1-1/2 in (10.3 x 38.1 mm) |
| Speed | Time-Delay (Slow-Blow) |
| UL Class | Class CC |
| Voltage Rating | 600 VAC / 300 VDC |
| Breaking Capacity | 200 kA @ 600 VAC; 20 kA @ 300 VDC (Littelfuse self-certified) |
| Body Material | Melamine |
| Mounting Style | Cartridge |
| Terminal Type | Ferrule with rejection tip |
| Approvals | UL Listed, CSA, CE |
| Opening Time | 135%: max. 60 min; 200%: min. 12 s |
| Melting I²t (A²s) | 0.2416 |
| End Cap Material | Nickel-plated bronze |
