To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | LITTELFUSE |
| Manufacturer Product Number | KLDR010.TXP |
| Description | Industrial Fuse; 10A; Class CC; Slow-Blow; 10x38; Pack of 10; 600 VAC / 300 VDC; Rej |
| Datasheet | Download Datasheet |

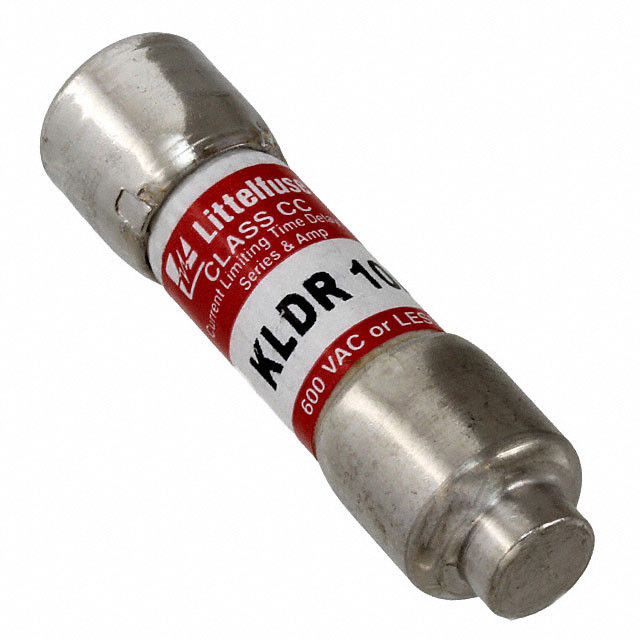

The Littelfuse KLDR010.TXP is a 10 A time-delay (slow-blow) UL Class CC fuse, rated 600 VAC / 300 VDC.
Class CC is the 600 V, 200 kA branch-circuit fuse in the 13/32 x 1-1/2 in size; its rejection tip keeps it out of holders meant for midget fuses. A time-delay element rides through the brief inrush of motors, transformers and capacitive power supplies, yet still opens on a sustained overload.
Interrupting rating: 200 kA @ 600 VAC; 20 kA @ 300 VDC (Littelfuse self-certified). Opening times, as a percentage of the rated current: 135%: max. 60 min; 200%: min. 12 s. Pre-arcing I²t 132.0 A²s.
Construction: 13/32 x 1-1/2 in (10.3 x 38.1 mm); ferrule with rejection tip.
It is UL Listed, CSA certified and CE marked (UL file E81895). Standards: UL 248-4.
| Category | |
| Manufacturer | LITTELFUSE |
| Model | KLDR |
